SENRING

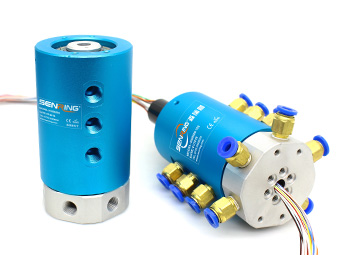

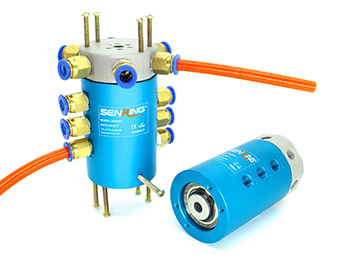

Pneumatic Rotary Union(+Electric)

3006006 Series G1/8 6 Passage Rotary Unions

4 Passages Pnuematic/+Electric Rotary Unions,4 Passages Rotary Unions

SENRING 6 passages rotary unions 3006006 series,support G1/8 port for 6~8mm pipes,can transfer various mediums including compressed air,steam,vacuum,MQL...etc. when 360° rotating, Advantages : compact size, light weight , low torque, each channel works in

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE
Features
Support transmit mixed power and signals,such as USB,HDMI, 1000M ethernet, VGA, DVI, coaxial RF (high frequency),servo motor signal,industrial bus slip rings...etc;
360° transmit compressed air,steam,vacuum,negative pressure,positive pressure...etc;
Max. Pressure(s):1Mpa (vacuum: -1.5kPa, higher Pressure can be customized);
Support 6 G1/8" port for 6~8mm pipes;
Part no. description
3006006 series 3006006 Series G1/8 6 Passage Rotary Unions slip ring description
Drawing
3006006 series 3006006 Series G1/8 6 Passage Rotary Unions slip ring Drawing
Standard model list
Model Passages(Gas) Port Size Pipe Size
3006006 6 passages G1/8" 6~8mm
Drawing
Standard model list
Model Passages(Gas) Port Size Pipe Size Signal Circuits(2A) Length L(mm)
3006006-06S 6 passages G1/8" 6~8mm 6 14
3006006-12S 6 passages G1/8" 6~8mm 12 21
3006006-24S 6 passages G1/8" 6~8mm 24 35
3006006-36S 6 passages G1/8" 6~8mm 36 52.3
3006006-56S 6 passages G1/8" 6~8mm 56 82
Drawing
Standard model list
Model Passages(Gas) Port Size Pipe Size Power Circuits(10A) Signal Circuits(5A) Length L(mm)
3006006-06S 6 Passages G1/8" 6~8mm 0 6 38
3006006-0610 6 Passages G1/8" 6~8mm 6 0 38
3006006-12S 6 Passages G1/8" 6~8mm 0 12 55
3006006-0610-06S 6 Passages G1/8" 6~8mm 6 6 55
3006006-1210 6 Passages G1/8" 6~8mm 12 0 55
3006006-0610-12S 6 Passages G1/8" 6~8mm 6 12 71.5
3006006-1210-06S 6 Passages G1/8" 6~8mm 12 6 71.5
3006006-18S 6 Passages G1/8" 6~8mm 0 18 71.5
3006006-1810 6 Passages G1/8" 6~8mm 18 0 71.5
3006006-0610-18S 6 Passages G1/8" 6~8mm 6 18 88.5
3006006-24S 6 Passages G1/8" 6~8mm 0 24 88.5
3006006-30S 6 Passages G1/8" 6~8mm 0 30 106
3006006-36S 6 Passages G1/8" 6~8mm 0 36 125
Technical Specification of 3006006 series slip ring
Rotary Unions & Joints Spec.
Passages(Gas) 6 passages Max. Operating Pressure Positive Pressure 1Mpa, Vacuum -1.5kPa
Pipe Size 6~8mm pipe, G1/8" Port torque <0.6N.m
Mechanical Data Electrical Data
spec. data spec. data
Working life 20millions for ref(depends on working conditions) Power Signal
Max. Operating Speed 250RPM continously, 1000RPM intermittently Voltage range 0~440VAC/VDC 0~440VAC/VDC
Working temp. -30°C~80°C Insolution resistance <500MΩ/300VDC <500MΩ/300VDC
Work humidity 0~85% RH Lead wire spec. AWG17# Silver-plated teflon wire AWG22# Silver-plated teflon wire
Contact Materia Precious Metal Lead wire length standard 250mm(can be customized)
Housing Material aluminum alloy Insolution resistance [email protected],6s
IP Grade IP51 Electrical noise <0.01Ω
