SENRING
Pneumatic Rotary Union(+Electric)

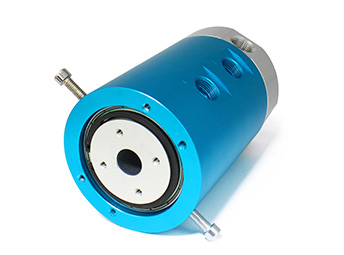

3004012 Series G3/8 4 Passage Pneumatic & Electric Rotary Union

4 Passage,Passage Size G3/8",Support 10~12mm Pipes,Can be Combine To Transfer 6~56 Circuits Electrical Power/Signal

SENRING 4 passages Pneumatic & Electric Rotary Union 3004012 series with standard G3/8" port for 10~12mm pipes,can transfer pneumatic/ from static part to rotating part of the devices suitable to transfer various mediums including air,steam,vacuum,negati

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE
Features
Support transmit mixed power and signals,such as USB,HDMI, 1000M ethernet, VGA, DVI, coaxial RF (high frequency),servo motor signal,industrial bus slip rings...etc;
360° transmit compressed air,steam,vacuum,negative pressure,positive pressure...etc;
Max. Pressure(s):1Mpa (vacuum: -1.5kPa, higher Pressure can be customized);
Support 4 G3/8" port for 10~12mm pipes;
Part no. description
3004012 series 3004012 Series G3/8 4 Passage Pneumatic & Electric Rotary Union slip ring description
Drawing
3004012 series 3004012 Series G3/8 4 Passage Pneumatic & Electric Rotary Union slip ring Drawing
Standard model list
Model Passages(Gas) Port Size Pipe Size
3004012 4 passages G3/8" 10~12mm
Drawing
Standard model list
Model Passages(Gas) Port Size Pipe Size Signal Circuits(2A) Length L(mm)
3004012-06S 4 passages G3/8" 10~12mm 6 14
3004012-12S 4 passages G3/8" 10~12mm 12 21
3004012-24S 4 passages G3/8" 10~12mm 24 35
3004012-36S 4 passages G3/8" 10~12mm 36 52.3
3004012-56S 4 passages G3/8" 10~12mm 56 82
Drawing
Standard model list
Model Passages(Gas) Port Size Pipe Size Power Circuits(10A) Signal Circuits(2A) Length L(mm)
3004012-06S 4 Passages G3/8" 10~12mm 0 6 48
3004012-0610 4 Passages G3/8" 10~12mm 6 0 48
3004012-12S 4 Passages G3/8" 10~12mm 0 12 72
3004012-0610-06S 4 Passages G3/8" 10~12mm 6 6 72
3004012-1210 4 Passages G3/8" 10~12mm 12 0 72
3004012-0610-12S 4 Passages G3/8" 10~12mm 6 12 96
3004012-1210-06S 4 Passages G3/8" 10~12mm 12 6 96
3004012-18S 4 Passages G3/8" 10~12mm 0 18 96
3004012-1810 4 Passages G3/8" 10~12mm 18 0 96
3004012-0610-18S 4 Passages G3/8" 10~12mm 6 18 120
3004012-24S 4 Passages G3/8" 10~12mm 0 24 120
3004012-2410 4 Passages G3/8" 10~12mm 24 0 120
3004012-36S 4 Passages G3/8" 10~12mm 0 36 168
3004012-1210-24S 4 Passages G3/8" 10~12mm 12 24 168
3004012-3610 4 Passages G3/8" 10~12mm 36 0 168
3004012-48S 4 Passages G3/8" 10~12mm 0 48 216
3004012-1210-36S 4 Passages G3/8" 10~12mm 12 36 216
3004012-4810 4 Passages G3/8" 10~12mm 48 0 216
3004012-60S 4 Passages G3/8" 10~12mm 0 60 264
3004012-1210-48S 4 Passages G3/8" 10~12mm 12 48 264
3004012-72S 4 Passages G3/8" 10~12mm 0 72 312
3004012-2410-48S 4 Passages G3/8" 10~12mm 24 48 312
3004012-84S 4 Passages G3/8" 10~12mm 0 84 360°
3004012-2410-60S 4 Passages G3/8" 10~12mm 20 60 360°
3004012-96S 4 Passages G3/8" 10~12mm 0 96 408
3004012-108S 4 Passages G3/8" 10~12mm 0 108 456
3004012-120S 4 Passages G3/8" 10~12mm 0 120 504
Technical Specification of 3004012 series slip ring
Passages(Gas) 4 passages
Pipe Size 10~12mm pipe, G3/8" Port
Mechanical Data
spec. data
Working life 20millions for ref(depends on working conditions)
Max. Operating Speed 250RPM continously, 1000RPM intermittently
Working temp. -30°C~80°C
Work humidity 0~85% RH
Contact Materia Precious Metal
Housing Material aluminum alloy
IP Grade IP51
Max. Operating
Pressure
Positive Pressure 1Mpa, Vacuum -1.5kPa
torque <0.4N.m
Electrical Data
spec. data
Power Signal
Voltage range 0~440VAC/VDC 0~440VAC/VDC
Insolution resistance <500MΩ/300VDC <500MΩ/300VDC
Lead wire spec. AWG17# Silver-plated teflon wire AWG22# Silver-plated teflon wire
Lead wire length standard 250mm(can be customized)
Insolution resistance [email protected],6s
Electrical noise <0.01Ω
