Pneumatic Rotary Union(+Electric)

3002006 Series 2 Passage Rotary Unions

2 Gas Passage,Passage Size G1/8",Support 6~8mm Pipes,Can be Combine To Transfer 6~56 Circuits Electrical Power/Signal

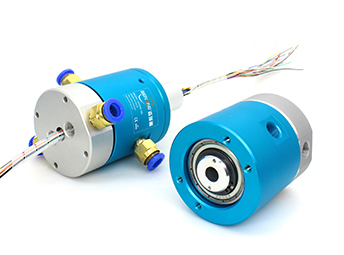

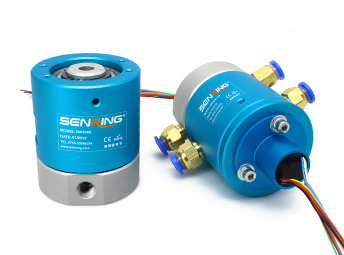

SENRING two passages rotary unions 3002006 series,support G1/8 port for 6~8mm pipes,can transfer various mediums including air,steam,vacuum,negative pressure,positive pressure...etc. when 360° rotating, Advantages : compact size, light weight , low torque

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE
Features
Support transmit mixed power and signals,such as USB,HDMI, 1000M ethernet, VGA, DVI, coaxial RF (high frequency),servo motor signal,industrial bus slip rings...etc;
360° transmit compressed air,steam,vacuum,negative pressure,positive pressure...etc;
Max. Pressure(s):1Mpa (vacuum: -1.5kPa, higher Pressure can be customized);
Support 2 G1/8" port for 6~8mm pipes;
Part no. description
3002006 series 3002006 Series 2 Passage Rotary Unions slip ring description
Drawing
3002006 series 3002006 Series 2 Passage Rotary Unions slip ring Drawing
Standard model list
Model Passages(Gas) Port Size Pipe Size
3002006 2 passages G1/8" 6~8mm
Drawing
Standard model list
Model Passages(Gas) Port Size Pipe Size Signal Circuits(2A) Length L(mm)
3002006-06S 2 passages G1/8" 6~8mm 6 14
3002006-12S 2 passages G1/8" 6~8mm 12 21
3002006-24S 2 passages G1/8" 6~8mm 24 35
3002006-36S 2 passages G1/8" 6~8mm 36 52.3
3002006-56S 2 passages G1/8" 6~8mm 56 82
Drawing
Standard model list
Model Passages(Gas) Port Size Pipe Size Power Circuits(10A) Signal Circuits(2A) Length L(mm)
3002006-06S 2 Passages G1/8" 6~8mm 0 6 38
3002006-0610 2 Passages G1/8" 6~8mm 6 0 38
3002006-12S 2 Passages G1/8" 6~8mm 0 12 55
3002006-0610-06S 2 Passages G1/8" 6~8mm 6 6 55
3002006-1210 2 Passages G1/8" 6~8mm 12 0 55
3002006-0610-12S 2 Passages G1/8" 6~8mm 6 12 71.5
3002006-1210-06S 2 Passages G1/8" 6~8mm 12 6 71.5
3002006-18S 2 Passages G1/8" 6~8mm 0 18 71.5
3002006-1810 2 Passages G1/8" 6~8mm 18 0 71.5
3002006-0610-18S 2 Passages G1/8" 6~8mm 6 18 88.5
3002006-24S 2 Passages G1/8" 6~8mm 0 24 88.5
3002006-30S 2 Passages G1/8" 6~8mm 0 30 106
3002006-36S 2 Passages G1/8" 6~8mm 0 36 125
Technical Specification of 3002006 series slip ring
Passages(Gas) 2 passages
Pipe Size 6~8mm pipe, G1/8" Port
Mechanical Data
spec. data
Working life 20millions for ref(depends on working conditions)
Max. Operating Speed 250RPM continously, 1000RPM intermittently
Working temp. -30°C~80°C
Work humidity 0~85% RH
Contact Materia Precious Metal
Housing Material aluminum alloy
IP Grade IP51
Max. Operating
Pressure
Positive Pressure 1Mpa, Vacuum -1.5kPa
torque <0.2N.m
Electrical Data
spec. data
Power Signal
Voltage range 0~440VAC/VDC 0~440VAC/VDC
Insolution resistance <500MΩ/300VDC <500MΩ/300VDC
Lead wire spec. AWG17# Silver-plated teflon wire AWG22# Silver-plated teflon wire
Lead wire length standard 250mm(can be customized)
Insolution resistance [email protected],6s
Electrical noise <0.01Ω
