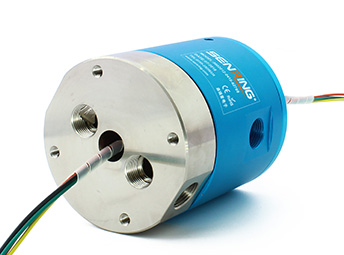

3002012 Series G3/8 2 Passage Pneumatic & Electric Rotary Union

SENRING 2 passages Pneumatic & Electric Rotary Union 3002012 series,support G3/8 port for 10~12mm pipes,can transfer var

SENRING 2 passages Pneumatic & Electric Rotary Union 3002012 series with standard G3/8" port for 10~12mm pipes,can transfer pneumatic/ from static part to rotating part of the devices suitable to transfer various mediums including air,steam,vacuum,negati

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE
Features
Support transmit mixed power and signals,such as USB,HDMI, 1000M ethernet, VGA, DVI, coaxial RF (high frequency),servo motor signal,industrial bus slip rings...etc;
360° transmit compressed air,steam,vacuum,negative pressure,positive pressure...etc;
Max. Pressure(s):1Mpa (vacuum: -1.5kPa, higher Pressure can be customized);
Support 2 G3/8" port for 10~12mm pipes;
Part no. description
3002012 series 3002012 Series G3/8 2 Passage Pneumatic & Electric Rotary Union slip ring description
Drawing
3002012 series 3002012 Series G3/8 2 Passage Pneumatic & Electric Rotary Union slip ring Drawing
Standard model list
Model Passages(Gas) Port Size Pipe Size
3002012 2 passages G3/8" 10~12mm
Drawing
Standard model list
Model Passages(Gas) Port Size Pipe Size Signal Circuits(2A) Length L(mm)
3002012-06S 2 passages G3/8" 10~12mm 6 14
3002012-12S 2 passages G3/8" 10~12mm 12 21
3002012-24S 2 passages G3/8" 10~12mm 24 35
3002012-36S 2 passages G3/8" 10~12mm 36 52.3
3002012-56S 2 passages G3/8" 10~12mm 56 82
Drawing
Standard model list
Model Passages(Gas) Port Size Pipe Size Power Circuits(10A) Signal Circuits(2A) Length L(mm)
3002012-06S 2 Passages G3/8" 10~12mm 0 6 48
3002012-0610 2 Passages G3/8" 10~12mm 6 0 48
3002012-12S 2 Passages G3/8" 10~12mm 0 12 72
3002012-0610-06S 2 Passages G3/8" 10~12mm 6 6 72
3002012-1210 2 Passages G3/8" 10~12mm 12 0 72
3002012-0610-12S 2 Passages G3/8" 10~12mm 6 12 96
3002012-1210-06S 2 Passages G3/8" 10~12mm 12 6 96
3002012-18S 2 Passages G3/8" 10~12mm 0 18 96
3002012-1810 2 Passages G3/8" 10~12mm 18 0 96
3002012-0610-18S 2 Passages G3/8" 10~12mm 6 18 120
3002012-24S 2 Passages G3/8" 10~12mm 0 24 120
3002012-2410 2 Passages G3/8" 10~12mm 24 0 120
3002012-36S 2 Passages G3/8" 10~12mm 0 36 168
3002012-1210-24S 2 Passages G3/8" 10~12mm 12 24 168
3002012-3610 2 Passages G3/8" 10~12mm 36 0 168
3002012-48S 2 Passages G3/8" 10~12mm 0 48 216
3002012-1210-36S 2 Passages G3/8" 10~12mm 12 36 216
3002012-4810 2 Passages G3/8" 10~12mm 48 0 216
3002012-60S 2 Passages G3/8" 10~12mm 0 60 264
3002012-1210-48S 2 Passages G3/8" 10~12mm 12 48 264
3002012-72S 2 Passages G3/8" 10~12mm 0 72 312
3002012-2410-48S 2 Passages G3/8" 10~12mm 24 48 312
3002012-84S 2 Passages G3/8" 10~12mm 0 84 360°
3002012-2410-60S 2 Passages G3/8" 10~12mm 20 60 360°
3002012-96S 2 Passages G3/8" 10~12mm 0 96 408
3002012-108S 2 Passages G3/8" 10~12mm 0 108 456
3002012-120S 2 Passages G3/8" 10~12mm 0 120 504
Technical Specification of 3002012 series slip ring
Rotary Unions & Joints Spec.
Passages(Gas) 2 passages Max. Operating Pressure Positive Pressure 1Mpa, Vacuum -1.5kPa
Pipe Size 10~12mm pipe, G3/8" Port torque <0.2N.m
Mechanical Data Electrical Data
spec. data spec. data
Working life 20millions for ref(depends on working conditions) Power Signal
Max. Operating Speed 250RPM continously, 1000RPM intermittently Voltage range 0~440VAC/VDC 0~440VAC/VDC
Working temp. -30°C~80°C Insolution resistance <500MΩ/300VDC <500MΩ/300VDC
Work humidity 0~85% RH Lead wire spec. AWG17# Silver-plated teflon wire AWG22# Silver-plated teflon wire
Contact Materia Precious Metal Lead wire length standard 250mm(can be customized)
Housing Material aluminum alloy Insolution resistance [email protected],6s
IP Grade IP51 Electrical noise <0.01Ω
