SENRING
Pneumatic Rotary Union(+Electric)

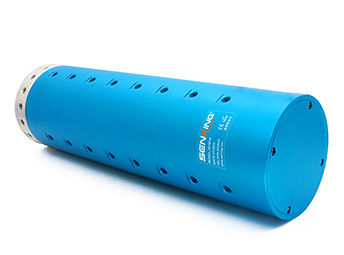

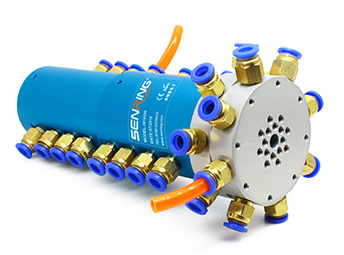

3016004 Series M5 16 Passage Pnuematic/+Electric Hybridry Rotary Unions

16 Passage+6~36 Circuits Electrical,support 16 M5 port for 4mm pipes

SENRING 3016004 series 16 passages rotary unions provides a positive seal between stationary piping and a rotating cylinder and is applied to compressed air,steam,vacuum..etc service.Available in 3016004,3016004-06S,3016004-12S,3016004-24S,3016004-36S mod

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE
Features
Support transmit mixed power and signals,such as USB,HDMI, 1000M ethernet, VGA, DVI, coaxial RF (high frequency),servo motor signal,industrial bus slip rings,etc.;
360° transmit compressed air,steam,vacuum,negative pressure,positive pressure...etc.
Max. Pressure(s):1Mpa (vacuum: -1.5kPa, higher Pressure can be customized);
Support 16 M5 port for 4mm pipes;
Part no. description
3016004 series 3016004 Series M5 16 Passage Pnuematic/+Electric Hybridry Rotary Unions slip ring description
Drawing
3016004 series 3016004 Series M5 16 Passage Pnuematic/+Electric Hybridry Rotary Unions slip ring Drawing
Standard model list
Model Passages(Gas) Port Size Pipe Size
3016004 16 passages M5 4~6mm
Drawing
Standard model list
Model Passages(Gas) Port Size Pipe Size Signal Circuits(2A) Length L(mm)
3016004-06S 16 passages M5 4~6mm 6 14
3016004-12S 16 passages M5 4~6mm 12 21
3016004-24S 16 passages M5 4~6mm 24 35
3016004-36S 16 passages M5 4~6mm 36 52
Technical Specification of 3016004 series slip ring
Rotary Unions & Joints Spec.
Passages(Gas) 16 passages Max. Operating Pressure Positive Pressure 1Mpa, Vacuum -1.5kPa
Pipe Size 4mm pipe, M5 port torque <1.6N.m
Mechanical Data Electrical Data
spec. data spec. data
Working life 20millions for ref(depends on working conditions) Power Signal
Max. Operating Speed 250RPM continously, 1000RPM intermittently Voltage range 0~240VAC/VDC 0~240VAC/VDC
Working temp. -30°C~80°C Insolution resistance <500MΩ/300VDC <500MΩ/300VDC
Work humidity 0~85% RH Lead wire spec. AWG26# Silver-plated teflon wire AWG26# Silver-plated teflon wire
Contact Materia Precious Metal Lead wire length standard 250mm(can be customized)
Housing Material aluminum alloy Insolution resistance [email protected],6s
IP Grade IP51 Electrical noise <0.01Ω
