Servo Motor Encoder Slip Ring

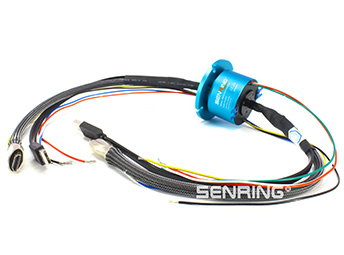

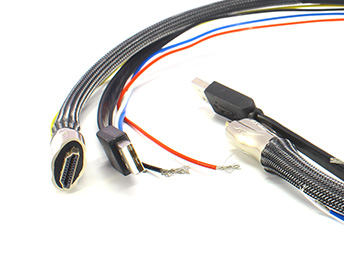

ZM056 Series Servo Motor Encode Slip Ring

without hole(solid),OD 56mm,serve for 4pcs servo motors

SENRING ZM056 series OD 56mm,without hole(solid)servo motor encode slip rings,specially desinged for servo motor/encoder of SIMEMS, YASKAWA,Panasonic,Mitsubishi, suitable for all kinds of foreign & domesitc servo mortor / stepper motor.Special inner wirin

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE
Features
OD 56mm,without hole(solid);
With flange on rotor side for installation,serve for 1~4pcs servo motors.
Application for all kinds of foreign & domesitc servo mortor / stepper motor,such as SIMEMS, YASKAWA,Panasonic,Mitsubishi,and so on.
Special inner wiring and shielding design to avoid encoder errors
Can combine with other switch signal/power channels , CanBus and Profibus.....
Special inner wiring and shielding design to avoid encoder errors,loss rate:<0.02%
Part no. description
zm056 series ZM056 Series Servo Motor Encode Slip Ring slip ring description
Drawing
zm056 series ZM056 Series Servo Motor Encode Slip Ring slip ring Drawing
Standard model list
Model list Servo motor No. Power circuits(10A) Signal circuits(5A) Length L(mm)
ZM056-01 1 0 0 55
ZM056-01-06S 1 0 6 71.5
ZM056-01-12S 1 0 12 88.5
ZM056-01-24S 1 0 24 122
ZM056-01-1210-12S 1 12 12 122
ZM056-02 2 0 0 88.5
ZM056-02-06S 2 0 6 105
ZM056-02-12S 2 0 12 122
ZM056-02-24S 2 0 24 156
ZM056-02-1210-12S 2 12 12 156
ZM056-03 3 0 0 122
ZM056-03-06S 3 0 6 122
ZM056-03-12S 3 0 12 138.8
ZM056-03-24S 3 0 24 172.4
ZM056-03-1210-12S 3 12 12 172.5
ZM056-04 4 0 0 138.8
ZM056-04-06S 4 0 6 155.6
ZM056-04-12S 4 0 12 172.4
ZM056-04-24S 4 0 24 200.4
ZM056-04-1210-12S 4 12 12 200.4
Technical Specification of zm056 series slip ring
Mechanical
spec. data
Working life pls refer to product grade table
Rotating speed pls refer to product grade table
Working temp. -30℃~80℃
Work humidity 0~85% RH
Contact material refer to slip ring grade table
Housing material aluminum alloy
Torque 0.1N.m+0.03N.m/6circuits
Mechanical vibration MIL-STD-810E
Material RoHS certification
Electrical
spec. data
Power Signal
Voltage range 0~440VAC/VDC 0~440VAC/VDC
Insolution resistance ≥1000MΩ/500VDC ≥1000MΩ/500VDC
Lead wire spec. power cable or AWG#17 teflon wire 6 cores shielded cable or AWG#22 teflon wire
Lead wire length standard 300mm
(can be customized)
Dielectric Strength 500VAC@50Hz,60s
Electrical noise < 0.01Ω
Loss rate <0.02%
CE certification YES
zm056 Grade Table
grade code Max. Operating Speed Working life Contact material
C:Standard 400RPM 20 millions revolutions precious metal
D:Industrical 800RPM 60 millions revolutions gold-gold
H:High Quality 1200RPM 150 millions revolutions gold alloy
