USB Slip Ring

UH1256-02 Series USB2.0 Signal Slip Ring

2 channels USB2.0 wire+1~24 circuits power/signal;

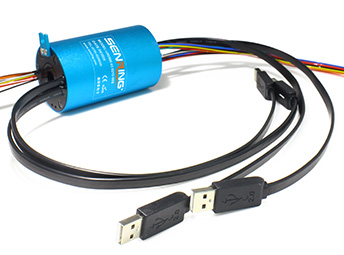

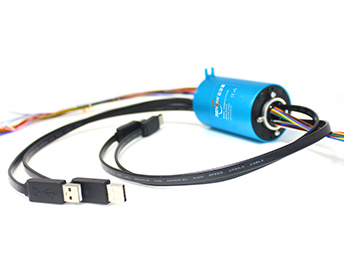

SENRING UH1256-02 series Signgle channel USB slip ring,hole size 12.7mm,OD56MM,can transmit 1 channel USB2.0 signal when 360° rotating, can be combined to transmit 1~34 circuits power/signal as well as IEEE1394 and various of USB signal. SNU12 series 1 c

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE
Features
Standard USB male or female connector, can be customized;
Stably transmit 1 channel USB2.0 signal;
Can be combined to transmit 1~34 circuits power/signal;
Hole size 12.7mm,OD 56mm;
Can be combined to transmit power and various signals of IEEE1394、Gigabit Ethernet、USB2.0,etc.
Can be combined to work with power and hydraulic/pneumaic rotary unions;
Part no. description
uh1256-02 series UH1256-02 Series USB2.0 Signal Slip Ring slip ring description
Drawing
uh1256-02 series UH1256-02 Series USB2.0 Signal Slip Ring slip ring Drawing
Standard model list
Model power/signal circuits no. USB channels no.
signal(2A) power(5A) power(10A) USB2.0 USB3.0
UH1256-02-04S400255
UH1256-02-0410040255
UH1256-02-0420004263
UH1256-02-10100100271.5
UH1256-02-10S1000271.5
UH1256-02-0210-08S820271.5
UH1256-02-0610-04S460271.5
UH1256-02-16100160288.5
UH1256-02-16S1600288.5
UH1256-02-22S22002106
UH1256-02-34S34002140
Technical Specification of uh1256-02 series slip ring
USB cable 2 channels USB2.0
BER(bit-error rate) 10E-11
Mechanical Data
spec data
working life SenRing Slip Rings Grade Table
Rotating speed 150RPM
working temp. -30℃∼80℃
work humidity 0∼85% RH
contact material refer to slip ring grade table
housing material aluminum alloy
torque 0.1N.m;+0.03N.m/6 circuits
connector USB 2.0 male ( female optional)
insertion loss ≤2db
Electrical Data
spec data
power signal
voltage range 0∼440VAC/VDC 0∼440VAC/VDC
insulation resistance ≥1000MΩ/500VDC ≥1000MΩ/500VDC
lead wire spec. AWG17# Silver-plated teflon AWG22# Silver-plated teflon
lead wire length standard 300mm(can be customized)
Dielectric Strength 500VAC@50Hz,60s
Electrical noise < 0.01Ω
CE certificate Yes
material RoHS certificate
uh1256-02 Grade Table
Grade code Max rotating speed working life contact material
C:standard 400RPM 20 millions precious metal
D:industrical 800RPM 60 millions
gold-gold
