USB Slip Ring

UH3899-01 Series USB2.0 Slip Ring,USB Rotary Connector

1 Channel USB2.0 wire +1~56 circuits power/signal

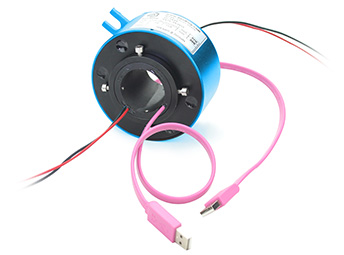

SENRING UH3899-01 series 1 channel USB slip ring(USB2.0 rotary connector),can transmit USB2.0 signal when 360° rotating,can be combined to stable transmit 2~38 circuits power/signal as well as IEEE1394 and various of USB signals. UH3899-01 series 1 channe

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE
Features
Standard USB male or female connector, can be customized;
Can stable transmit 2 channels USB2.0 signal;
Can be combined to transmit 2~38 circuits power/signal;
Hole size 38.1mm,OD 99mm;
Can be combined to transmit power and various signals of IEEE1394、Ethernet、USB2.0,etc.
Can be combined to work with power and hydraulic/pneumaic rotary unions;
Part no. description
uh3899-01 series UH3899-01 Series USB2.0 Slip Ring,USB Rotary Connector slip ring description
Drawing
uh3899-01 series UH3899-01 Series USB2.0 Slip Ring,USB Rotary Connector slip ring Drawing
Standard model list
Model power/signal circuits no. USB channels no.
signal(2A) power(5A) power(10A) USB2.0 USB3.0
UH3899-01-02S200148
UH3899-01-0210020148
UH3899-01-0420000172
UH3899-01-08S800172
UH3899-01-0810080172
UH3899-01-0210-06S620172
UH3899-01-0410-04S440172
UH3899-01-14S1400196
UH3899-01-14100140196
UH3899-01-0410-10S1040196
UH3899-01-0810-06S680196
UH3899-01-20S20001120
UH3899-01-201002001120
UH3899-01-26S26001144
UH3899-01-38S38001192

*Remark: Circuits can be combined in parallel for bigger current,N circuits of 10A to get N*10A,such as 2 circuits of 10A in parallel for 20A use.Pls contact the SenRing salesman if you want to customize USB and power/signal circuit no,or mix other signal.

Technical Specification of uh3899-01 series slip ring
USB cable 1 channels USB2.0
BER(bit-error rate) 10E-11
Mechanical Data
spec data
working life SenRing Slip Rings Grade Table
Rotating speed 150RPM
Sworking temp. -30℃∼80℃
work humidity 0∼85% RH
contact material refer to slip ring grade table
housing material aluminum alloy
torque 0.1N.m;+0.03N.m/6 circuits
connector USB 2.0 male ( female optional)
insertion loss ≤2db
Electrical Data
spec data
power signal
voltage range 0∼440VAC/VDC 0∼440VAC/VDC
insulation resistance ≥1000MΩ/500VDC ≥1000MΩ/500VDC
lead wire spec. AWG17# Silver-plated teflon AWG22# Silver-plated teflon
lead wire length standard 300mm(can be customized)
Dielectric Strength [email protected],60s
Electrical noise < 0.01Ω
CE certificate Yes
material RoHS certificate
uh3899-01 Grade Table
Grade code Max rotating speed working life contact material
C(standard) 400RPM 20 millions precious metal
D(industrical) 800RPM 60 millions precious metal
