SENRING

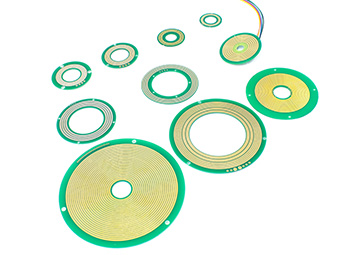

PCB Slip Rings

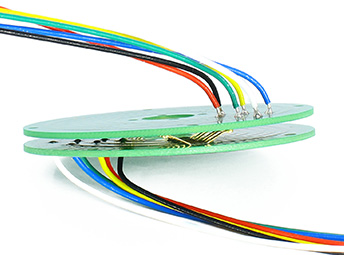

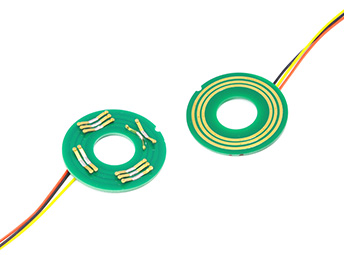

P012 series PCB slip ring

hole size 12.7mm,thickness 6mm

P012 series PCB slip ring,hole size 12.7mm,thickness 6mm,is more thinner than SenRing Pancake slip ring,adopt innovative PCB material,min thickness 5mm,ultra-hard gold plating and ultra-thick copper foil process,support power and signal combined transmiss

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE
Features
Hole size:12.7,thickness:6mm;
Adopting fiber brush technology make sure reliable contact under very low friction ;
Low contact resistance, no friction debris;
Can transmit precision signal and supply power when 360° rotaring;
Precious metal brush ensure high stability and reliability.
Part no. description
p012 series P012 series PCB slip ring slip ring description
Drawing
p012 series P012 series PCB slip ring slip ring Drawing
Standard model list
Model10Asignal/5ARings
P012-0310303
P012-0210-04S246
P012-06S066
P012-121012012
P012-0410-08S4812
P012-0810-04S8412
P012-03S033
P012-0410-02S426
P012-0610606
P012-0210-10S21012
P012-0610-06S6612
P012-12S0112

*Remark:Circuits can be combined in parallel for bigger current,N circuits of 10A to get N*10A,such as 2 circuits of 10A in parallel for 20A use. if you need customize the hole size,OD,thickness,circuit no.and signal type of slip ring,pls contact the SenRing technician:186 7557 7111.

Technical Specification of p012 series slip ring
Mechanical Data
spec data
working life(Reference) refer to slip ring grade table
Rotating speed refer to slip ring grade table
working temp. -30℃∼80℃
work humidity 0∼85% RH
contact material refer to slip ring grade table
housing material aluminum alloy
IP grade IP51
Electrical Data
spec data
power signal
voltage range 0∼440VAC/VDC 0∼440VAC/VDC
insulation resistance ≥1000MΩ/500VDC ≥1000MΩ/500VDC
lead wire spec. AWG17# Silver-plated teflon AWG22# Silver-plated teflon
lead wire length standard 300mm
(can be customized)
Dielectric Strength 500VAC@50Hz,60s
Electrical noise < 0.01Ω
torque 0.1N.m;+0.03N.m/6 circuits
p012 Grade Table
Grade code Max rotating speed working life contact material
C:standard 100RPM 5 millions revolutions precious metal
D:industrical 300RPM 20 millions revolutions
gold-gold
