PCB Slip Rings

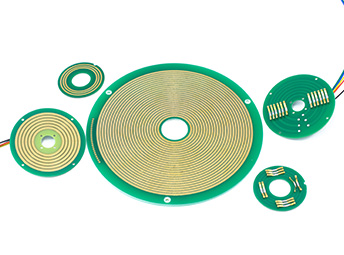

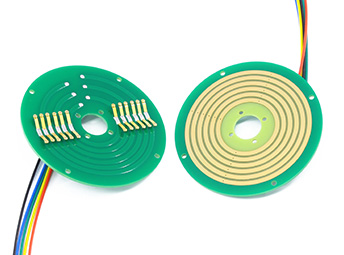

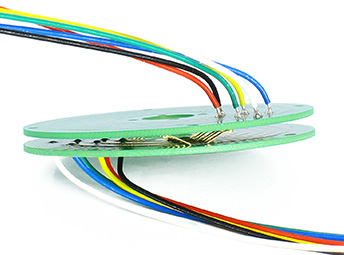

P025 series PCB slip ring

hole size 25.4mm,thickness 6mm

P025 series PCB slip ring,hole size 25.4mm,thickness 6mm(min thickness 5mm).P025 series innovative PCB material,adopt ultra-hard gold plating and ultra-thick copper foil process,support power and signal combined transmission,make sure high stability, low

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE
Features
Hole size:25.4,thickness:6mm;
Support 0~12 circuits power/signal;
Adopting fiber brush technology make sure reliable contact under very low friction ;
Low contact resistance, no friction debris;
Can be combined to transmit precision signal and supply power;
Precious metal brush ensure high stability and reliability.
Part no. description
p025 series P025 series PCB slip ring slip ring description
Drawing
p025 series P025 series PCB slip ring slip ring Drawing
Standard model list
Model 10A signal/5A Rings
P025-0310 3 0 3
P025-0210-04S 2 4 6
P025-06S 0 6 6
P025-1210 12 0 12
P025-0410-08S 4 8 12
P025-0810-04S 8 4 12
P025-03S 0 3 3
P025-0410-02S 4 2 6
P025-0610 6 0 6
P025-0210-10S 2 10 12
P025-0610-06S 6 6 12
P025-12S 0 1 12

*Remark:Circuits can be combined in parallel for bigger current,N circuits of 10A to get N*10A,such as 2 circuits of 10A in parallel for 20A use. if you need customize the hole size,OD,thickness,circuit no.and signal type of slip ring,pls contact the SenRing technician:186 7557 7111.

Technical Specification of p025 series slip ring
Mechanical Data
spec data
working life(Reference) refer to slip ring grade table
Rotating speed refer to slip ring grade table
working temp. -30℃∼80℃
work humidity 0∼85% RH
contact material refer to slip ring grade table
housing material aluminum alloy
IP grade IP51
Electrical Data
spec data
power signal
voltage range 0∼440VAC/VDC 0∼440VAC/VDC
insulation resistance ≥1000MΩ/500VDC ≥1000MΩ/500VDC
lead wire spec. AWG17# Silver-plated teflon AWG22# Silver-plated teflon
lead wire length standard 300mm
(can be customized)
Dielectric Strength 500VAC@50Hz,60s
Electrical noise < 0.01Ω
torque 0.1N.m;+0.03N.m/6 circuits
p025 Grade Table
Grade code Max rotating speed working life contact material
C:standard 100RPM 5 millions  precious metal
D:industrica
300RPM 20 millions
gold-gold
