SENRING

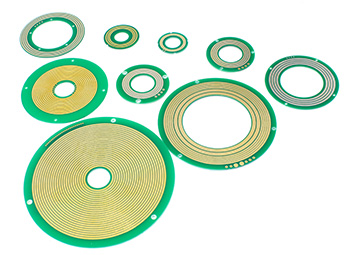

PCB Slip Rings

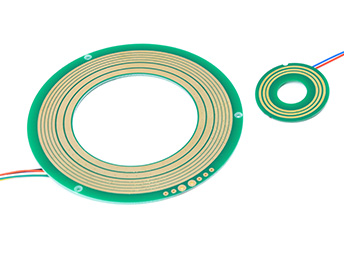

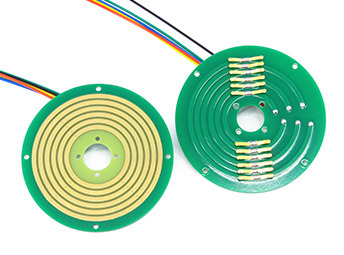

P038 series PCB slip ring

hole size 38.1mm,thickness 6mm

P038 series PCB slip ring,hole size 38.1mm,thickness 6mm(min thickness 5mm).P038 series innovative PCB material,adopt ultra-hard gold plating and ultra-thick copper foil process,support 2~12 circuits power and signal combined transmission,make sure high s

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE
Features
Hole size:38.1,thickness:6mm;
Support 0~12 circuits power/signal;
Adopting fiber brush technology make sure reliable contact under very low friction ;
Low contact resistance, no friction debris;
Can be combined to transmit precision signal and supply power;
Precious metal brush ensure high stability and reliability.
Part no. description
p038 series P038 series PCB slip ring slip ring description
Drawing
p038 series P038 series PCB slip ring slip ring Drawing
Standard model list
Model10Asignal/5ARings
P038-0310303
P038-0210-04S246
P038-06S066
P038-121012012
P038-0410-08S4812
P038-0810-04S8412
P038-03S033
P038-0410-02S426
P038-0610606
P038-0210-10S21012
P038-0610-06S6612
P038-12S0112

*Remark:Circuits can be combined in parallel for bigger current,N circuits of 10A to get N*10A,such as 2 circuits of 10A in parallel for 20A use. if you need customize the hole size,OD,thickness,circuit no.and signal type of slip ring,pls contact the SenRing technician:186 7557 7111.

Technical Specification of p038 series slip ring
Mechanical Data
spec data
working life(Reference) refer to slip ring grade table
Rotating speed refer to slip ring grade table
working temp. -30℃∼80℃
work humidity 0∼85% RH
contact material refer to slip ring grade table
housing material aluminum alloy
IP grade IP51
Electrical Data
spec data
power signal
voltage range 0∼440VAC/VDC 0∼240VAC/VDC
insulation resistance ≥1000MΩ/500VDC ≥1000MΩ/500VDC
lead wire spec. AWG17# Silver-plated teflon AWG22# Silver-plated teflon
lead wire length standard 300mm
(can be customized)
Dielectric Strength [email protected],60s
Electrical noise < 0.01Ω
torque 0.1N.m;+0.03N.m/6 circuits
p038 Grade Table
Grade code Max rotating speed working life contact material
C(standard) 100RPM 5 millions revolutions precious metal
precious metal 300RPM 20 millions revolutions precious metal
