SENRING
Through hole slip ring

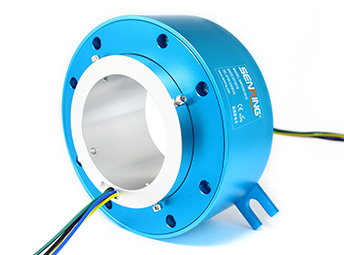

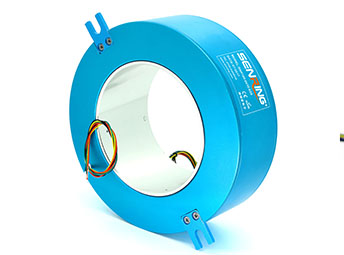

H120215 Series Hole Size 120mm(Hollow Shaft)Through Hole Slip Ring

hole size 120mm, OD 215mm

Senring H120215 series through bore slip ring,hole size 120mm(suitable for shaft≤120mm),OD 215mm,housing material can be use plastic, aluminum alloy or stainless,it is ingergal precision slip ring。It can stably transmit 2~108 circuits [email protected] or [email protected]

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE
Features
Advanced multi-point contact brush technology ensures reliable contact with low friction;
support 1~108circuits power/signal,current and channels can be customized;
Can be customized to combine power/signal transmitting
Support transmitting power with signals ;
Integrated structure design, easy installation.
Part no. description
h120215 series H120215 Series Hole Size 120mm(Hollow Shaft)Through Hole Slip Ring slip ring description
Drawing
h120215 series H120215 Series Hole Size 120mm(Hollow Shaft)Through Hole Slip Ring slip ring Drawing
Standard model list
model circuits Length L(mm) model circuits Length L(mm)
10A signal or 0-5A 10A signal or 0-5A
H120215-02S 0 2 56 H120215-36S 0 36 192
H120215-0210 2 0 56 H120215--0610-30S 6 30 192
H120215-03S 0 3 60 H120215-1210-24S 12 24 192
H120215-0310 3 0 60 H120215-3610 36 0 192
H120215-06S 0 6 72 H120215-42S 0 42 216
H120215-0210-04S 2 4 72 H120215-0610-36S 6 36 216
H120215-0410-02S 4 2 72 H120215-1210-30S 12 30 216
H120215-0610 6 0 72 H120215-4210 42 0 216
H120215-12S 0 12 96 H120215-48S 0 48 240
H120215-0210-10S 2 10 96 H120215-0610-42S 6 42 240
H120215-0310-09S 3 9 96 H120215-1210-36S 12 36 240
H120215-0610-06S 6 6 96 H120215-1810-30S 18 30 240
H120215-0810-04S 8 4 96 H120215-P2410-24S 24 24 240
H120215-1010-02S 10 2 96 H120215-4810 48 0 240
H120215-1210 12 0 96 H120215-60S 0 60 288
H120215-18S 0 18 120 H120215-0610-54S 6 54 288
H120215-0210-16S 2 16 120 H120215-0910-51S 9 51 288
H120215-0410-14S 4 14 120 H120215-1210-48S 12 48 288
H120215-0610-12S 6 12 120 H120215-2410-36S 24 36 288
H120215-0810-10S 8 10 120 H120215-72S 0 72 336
H120215-1010-08S 10 8 120 H120215-1210-60S 12 60 336
H120215-1210-06S 12 6 120 H120215-2410-48S 24 48 336
H120215-1410-04S 14 4 120 H120215-3610-36S 36 36 336
H120215-1610-02S 16 2 120 H120215-84S 0 84 384
H120215-24S 0 24 144 H120215-1210-72S 12 72 384
H120215-0410-20S 4 20 144 H120215-2410-60S 24 60 384
H120215-0610-18S 6 18 144 H120215-3610-48S 36 48 384
H120215-1210-12S 12 12 144 H120215-96S 0 96 434
H120215-1810-06S 18 6 144 H120215-1210-84S 12 84 434
H120215-2410 24 0 144 H120215-2410-72S 24 72 434
H120215-30S 0 30 168 H120215-3610-60S 36 60 434
H120215-0610-24S 6 24 168 H120215-4210-54S 42 54 434
H120215-1210-18S 12 18 168 H120215-108S 0 108 480
H120215-1810-12S 18 12 168 H120215-1210-96S 12 96 480
H120215-2410-06S 24 6 168 H120215-2410-84S 24 84 480
H120215-3010 30 0 168 H120215-3610-72S 36 72 480

* Remark: circuits can be combined in parallel for bigger current, N circuits of 10A to get N*10A, such as 2 circuits of 10A in parallel for 20A use.10A circuits No. and signal circuits ( 5A) No. can be customized based on standard products, pls inquiry Senring for details.

Technical Specification of h120215 series slip ring
Mechanicall parameters
Working Life refer to slip ring grade table
Rotating speed refer to slip ring grade table
Working Temp. -30°C~80°C
Work Humidity 0~85% RH
Contact Material refer to slip ring grade table
Housing Material AL alloy
Torque 0.05N.m+0.02N.m/6 wire
IP Grade IP51
Electrical parameters
Spec. Power Signal
Voltage Range 0~600VAC/VDC 0~600VAC/VDC
Insolution Resistance ≥1000MΩ/500VDC ≥1000MΩ/500VDC
Lead wire Spec. AWG17# Silver-plated teflon AWG22# Silver-plated teflon
lead wire length standard length 300mm(can be customized)
Dielectric Strength [email protected],60s
Electrical Noise < 0.01Ω
h120215 Grade Table
Grade code Max rotating speed Working Life Contact Material
C(Standard) 250RPM 20 millions revolutions precious metal
D(Industrical) 800RPM 60 millions revolutions precious metal
H(High Quality) 1200RPM 150 millions revolutions gold alloy
