SENRING
Through hole slip ring

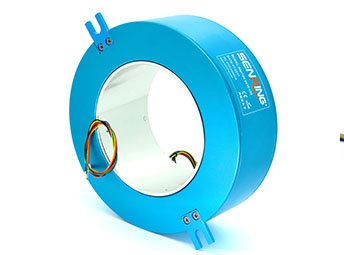

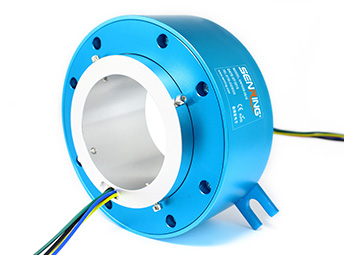

H100185 Series Hole Size 100mm(Hollow Shaft)Through Hole Slip Ring

ole size 100mm, OD 158mm

Senring H100185 series through bore slip ring,hole size 100mm(suitable for shaft≤100mm),OD 185mm,housing material can be use plastic, aluminum alloy or stainless,it is ingergal precision slip ring。It can stably transmit 2~12 circuits [email protected] or [email protected]

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE
Features
Advanced multi-point contact brush technology ensures reliable contact with low friction;
Support 1~108 circuits power/signal,customized for more circuits or large current;
Can be customized to combine power/signal transmitting
Support transmitting power with signals ;
Integrated structure design, easy installation.
Part no. description
h100185 series H100185 Series Hole Size 100mm(Hollow Shaft)Through Hole Slip Ring slip ring description
Drawing
h100185 series H100185 Series Hole Size 100mm(Hollow Shaft)Through Hole Slip Ring slip ring Drawing
Standard model list
model circuits Length L(mm) model circuits Length L(mm)
10A signal or 0-5A 10A signal or 0-5A
H100185-02S 0 2 48 H100185-36S 0 36 184
H100185-0210 2 0 48 H100185--0610-30S 6 30 184
H100185-03S 0 3 52 H100185-1210-24S 12 24 184
H100185-0310 3 0 52 H100185-3610 36 0 184
H100185-06S 0 6 64 H100185-42S 0 42 208
H100185-0210-04S 2 4 64 H100185-0610-36S 6 36 208
H100185-0410-02S 4 2 64 H100185-1210-30S 12 30 208
H100185-0610 6 0 64 H100185-4210 42 0 208
H100185-12S 0 12 88 H100185-48S 0 48 232
H100185-0210-10S 2 10 88 H100185-0610-42S 6 42 232
H100185-0310-09S 3 9 88 H100185-1210-36S 12 36 232
H100185-0610-06S 6 6 88 H100185-1810-30S 18 30 232
H100185-0810-04S 8 4 88 H100185-P2410-24S 24 24 232
H100185-1010-02S 10 2 88 H100185-4810 48 0 232
H100185-1210 12 0 88 H100185-60S 0 60 280
H100185-18S 0 18 112 H100185-0610-54S 6 54 280
H100185-0210-16S 2 16 112 H100185-0910-51S 9 51 280
H100185-0410-14S 4 14 112 H100185-1210-48S 12 48 280
H100185-0610-12S 6 12 112 H100185-2410-36S 24 36 280
H100185-0810-10S 8 10 112 H100185-72S 0 72 328
H100185-1010-08S 10 8 112 H100185-1210-60S 12 60 328
H100185-1210-06S 12 6 112 H100185-2410-48S 24 48 328
H100185-1410-04S 14 4 112 H100185-3610-36S 36 36 328
H100185-1610-02S 16 2 112 H100185-84S 0 84 376
H100185-24S 0 24 136 H100185-1210-72S 12 72 376
H100185-0410-20S 4 20 136 H100185-2410-60S 24 60 376
H100185-0610-18S 6 18 136 H100185-3610-48S 36 48 376
H100185-1210-12S 12 12 136 H100185-96S 0 96 426
H100185-1810-06S 18 6 136 H100185-1210-84S 12 84 426
H100185-2410 24 0 136 H100185-2410-72S 24 72 426
H100185-30S 0 30 160 H100185-3610-60S 36 60 426
H100185-0610-24S 6 24 160 H100185-4210-54S 42 54 426
H100185-1210-18S 12 18 160 H100185-108S 0 108 472
H100185-1810-12S 18 12 160 H100185-1210-96S 12 96 472
H100185-2410-06S 24 6 160 H100185-2410-84S 24 84 472
H100185-3010 30 0 160 H100185-3610-72S 36 72 472

* Remark: circuits can be combined in parallel for bigger current, N circuits of 10A to get N*10A, such as 2 circuits of 10A in parallel for 20A use.10A circuits No. and signal circuits ( 5A) No. can be customized based on standard products, pls inquiry Senring for details.

Technical Specification of h100185 series slip ring
Mechanicall parameters
Working Life refer to slip ring grade table
Rotating speed refer to slip ring grade table
Working Temp. -30°C~80°C
Work Humidity 0~85% RH
Contact Material refer to slip ring grade table
Housing Material AL alloy
Torque 0.05N.m+0.02N.m/6 wire
IP Grade IP51
Electrical parameters
Spec. Power Signal
Voltage Range 0~600VAC/VDC 0~600VAC/VDC
Insolution Resistance ≥1000MΩ/500VDC ≥1000MΩ/500VDC
Lead wire Spec. AWG17# Silver-plated teflon AWG22# Silver-plated teflon
lead wire length standard length 300mm(can be customized)
Dielectric Strength [email protected],60s
Electrical Noise < 0.01Ω
h100185 Grade Table
Grade code Max rotating speed Working Life Contact Material
C(Standard) 250RPM 20 millions revolutions precious metal
D(Industrical) 800RPM 60 millions revolutions precious metal
H(High Quality) 1200RPM 150 millions revolutions gold alloy
