Through hole slip ring

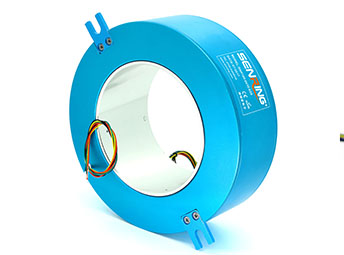

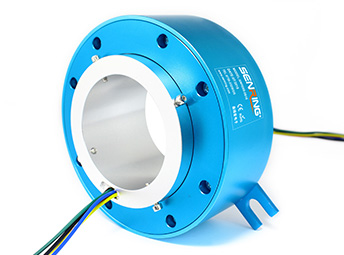

H150248 Series(Hollow Shaft)Through Hole Slip Ring

hole size 150mm ,OD 248mm

Senring H150248 series through bore slip ring,hole size 150mm(suitable for shaft≤150mm),OD 248mm,H150248 series is ingergal precision slip ring。It can stably transmit 2~108 circuits power@10A or signal@2A and applied to any devices where requires to trans

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE
Features
Support transmitting power(each 10A,N circuits of 10A to get N*10A) with signals;
Max rotating speed : 400RPM,600RPM,1200RPM(optional);
Standard mode support 2~36circuits power@10A or 2~108circuits signal@2A;
Contact materil used precious metal,ensure the stablity and working life.;
More smooth rotation,lower torque and lower dynamic resistance;
Integrated structure design, easy installation.
Part no. description
h150248 series H150248 Series(Hollow Shaft)Through Hole Slip Ring slip ring description
Drawing
h150248 series H150248 Series(Hollow Shaft)Through Hole Slip Ring slip ring Drawing
Standard model list
model circuits Length L(mm) model circuits Length L(mm)
10A signal or 0-5A 10A signal or 0-5A
H150248-02S 0 2 66 H150248-36S 0 36 236
H150248-0210 2 0 66 H150248--0610-30S 6 30 236
H150248-03S 0 3 71 H150248-1210-24S 12 24 266
H150248-0310 3 0 71 H150248-3610 36 0 266
H150248-06S 0 6 86 H150248-42S 0 42 266
H150248-0210-04S 2 4 86 H150248-0610-36S 6 36 266
H150248-0410-02S 4 2 86 H150248-1210-30S 12 30 266
H150248-0610 6 0 86 H150248-4210 42 0 266
H150248-12S 0 12 116 H150248-48S 0 48 296
H150248-0210-10S 2 10 116 H150248-0610-42S 6 42 296
H150248-0310-09S 3 9 116 H150248-1210-36S 12 36 296
H150248-0610-06S 6 6 116 H150248-1810-30S 18 30 296
H150248-0810-04S 8 4 116 H150248-P2410-24S 24 24 296
H150248-1010-02S 10 2 116 H150248-4810 48 0 296
H150248-1210 12 0 116 H150248-60S 0 60 356
H150248-18S 0 18 146 H150248-0610-54S 6 54 356
H150248-0210-16S 2 16 146 H150248-0910-51S 9 51 356
H150248-0410-14S 4 14 146 H150248-1210-48S 12 48 356
H150248-0610-12S 6 12 146 H150248-2410-36S 24 36 356
H150248-0810-10S 8 10 146 H150248-72S 0 72 416
H150248-1010-08S 10 8 146 H150248-1210-60S 12 60 416
H150248-1210-06S 12 6 146 H150248-2410-48S 24 48 416
H150248-1410-04S 14 4 146 H150248-3610-36S 36 36 416
H150248-1610-02S 16 2 146 H150248-84S 0 84 476
H150248-24S 0 24 176 H150248-1210-72S 12 72 476
H150248-0410-20S 4 20 176 H150248-2410-60S 24 60 476
H150248-0610-18S 6 18 176 H150248-3610-48S 36 48 476
H150248-1210-12S 12 12 176 H150248-96S 0 96 536
H150248-1810-06S 18 6 176 H150248-1210-84S 12 84 536
H150248-2410 24 0 176 H150248-2410-72S 24 72 536
H150248-30S 0 30 206 H150248-3610-60S 36 60 536
H150248-0610-24S 6 24 206 H150248-4210-54S 42 54 536
H150248-1210-18S 12 18 206 H150248-108S 0 108 596
H150248-1810-12S 18 12 206 H150248-1210-96S 12 96 596
H150248-2410-06S 24 6 206 H150248-2410-84S 24 84 596
H150248-3010 30 0 206 H150248-3610-72S 36 72 596

* Remark: circuits can be combined in parallel for bigger current, N circuits of 10A to get N*10A, such as 2 circuits of 10A in parallel for 20A use.10A circuits No. and signal circuits ( 5A) No. can be customized based on standard products, pls inquiry Senring for details.

Technical Specification of h150248 series slip ring
Mechanicall parameters
Working Life refer to slip ring grade table
Rotating speed refer to slip ring grade table
Working Temp. -30°C~80°C
Work Humidity 0~85% RH
Contact Material refer to slip ring grade table
Housing Material AL alloy
Torque 0.05N.m+0.02N.m/6 wire
IP Grade IP51
Electrical parameters
Spec. Power Signal
Voltage Range 0~690VAC/VDC 0~440VAC/VDC
Insolution Resistance ≥1000MΩ/500VDC ≥1000MΩ/500VDC
Lead wire Spec. AWG17# Silver-plated teflon AWG22# Silver-plated teflon
lead wire length standard length 300mm(can be customized)
Dielectric Strength 800VAC@50Hz,60s
Electrical Noise < 0.01Ω

h150248 Grade Table
Grade code Max rotating speed Working Life Contact Material
C(Standard) 250RPM 20 millions revolutions precious metal
D(Industrical) 600RPM 80 millions revolutions precious metal
H(High Quality) 1000RPM 150 millions revolutions gold alloy
