SENRING
Through hole slip ring

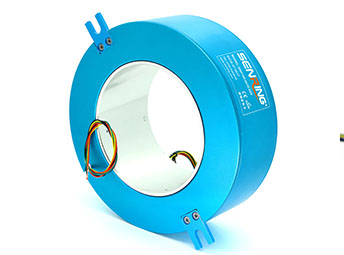

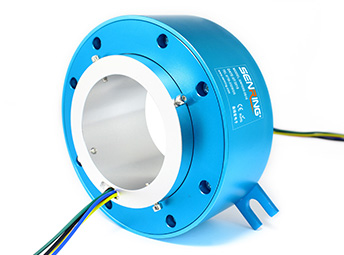

H200320 Series Through Bore Slip Ring

hole size: 200mm, OD: 320mm

Senring H200320 series through bore slip ring,hole size 200mm(suitable for shaft≤200mm),OD 320mm。H200320 series is ingergal precision slip ring,It can stably transmit power or signal and applied to any devices where requires to transmit power and signals

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE
Features
Max rotating speed : 150RPM,600RPM,1200RPM(optional);
Standard model supports 2~48 circuits power(0~10A) or 2~108 circuits signal(0~2A),current and channels can be customized;
Contact materil used precious metal,ensure the stablity and working life;
Support transmitting power with signals ;
Integrated structure design, easy installation.
Part no. description
h200320 series H200320 Series Through Bore Slip Ring slip ring description
Drawing
h200320 series H200320 Series Through Bore Slip Ring slip ring Drawing
Standard model list
model circuits Length L(mm) model circuits Length L(mm)
10A signal or 0-5A 10A signal or 0-5A
H200320-02S 0 2 70 H200320-36S 0 36 240
H200320-0210 2 0 70 H200320--0610-30S 6 30 240
H200320-03S 0 3 75 H200320-1210-24S 12 24 240
H200320-0310 3 0 75 H200320-3610 36 0 240
H200320-06S 0 6 90 H200320-42S 0 42 270
H200320-0210-04S 2 4 90 H200320-0610-36S 6 36 270
H200320-0410-02S 4 2 90 H200320-1210-30S 12 30 270
H200320-0610 6 0 90 H200320-4210 42 0 270
H200320-12S 0 12 120 H200320-48S 0 48 300
H200320-0210-10S 2 10 120 H200320-0610-42S 6 42 300
H200320-0310-09S 3 9 120 H200320-1210-36S 12 36 300
H200320-0610-06S 6 6 120 H200320-1810-30S 18 30 300
H200320-0810-04S 8 4 120 H200320-P2410-24S 24 24 300
H200320-1010-02S 10 2 120 H200320-4810 48 0 300
H200320-1210 12 0 120 H200320-60S 0 60 360
H200320-18S 0 18 150 H200320-0610-54S 6 54 360
H200320-0210-16S 2 16 150 H200320-0910-51S 9 51 360
H200320-0410-14S 4 14 150 H200320-1210-48S 12 48 360
H200320-0610-12S 6 12 150 H200320-2410-36S 24 36 360
H200320-0810-10S 8 10 150 H200320-72S 0 72 420
H200320-1010-08S 10 8 150 H200320-1210-60S 12 60 420
H200320-1210-06S 12 6 150 H200320-2410-48S 24 48 420
H200320-1410-04S 14 4 150 H200320-3610-36S 36 36 420
H200320-1610-02S 16 2 150 H200320-84S 0 84 480
H200320-24S 0 24 180 H200320-1210-72S 12 72 480
H200320-0410-20S 4 20 180 H200320-2410-60S 24 60 480
H200320-0610-18S 6 18 180 H200320-3610-48S 36 48 480
H200320-1210-12S 12 12 180 H200320-96S 0 96 540
H200320-1810-06S 18 6 180 H200320-1210-84S 12 84 540
H200320-2410 24 0 180 H200320-2410-72S 24 72 540
H200320-30S 0 30 210 H200320-3610-60S 36 60 540
H200320-0610-24S 6 24 210 H200320-4210-54S 42 54 540
H200320-1210-18S 12 18 210 H200320-108S 0 108 600
H200320-1810-12S 18 12 210 H200320-1210-96S 12 96 600
H200320-2410-06S 24 6 210 H200320-2410-84S 24 84 600
H200320-3010 30 0 210 H200320-3610-72S 36 72 600

* Remark: circuits can be combined in parallel for bigger current, N circuits of 10A to get N*10A, such as 2 circuits of 10A in parallel for 20A use.10A circuits No. and signal circuits ( 5A) No. can be customized based on standard products, pls inquiry Senring for details.

Technical Specification of h200320 series slip ring
Mechanicall parameters
Working Life refer to slip ring grade table
Rotating speed refer to slip ring grade table
Working Temp. -30°C~80°C
Work Humidity 0~85% RH
Contact Material refer to slip ring grade table
Housing Material AL alloy
Torque 0.05N.m+0.02N.m/6 wire
IP Grade IP51
Electrical parameters
Spec. Power Signal
Voltage Range 0~600VAC/VDC 0~600VAC/VDC
Insolution Resistance ≥1000MΩ/500VDC ≥1000MΩ/500VDC
Lead wire Spec. AWG17# Silver-plated teflon AWG22# Silver-plated teflon
lead wire length standard length 300mm(can be customized)
Dielectric Strength [email protected],60s
Electrical Noise < 0.01Ω
h200320 Grade Table
Grade code Max rotating speed Working Life Contact Material
C(Standard) 150RPM 20 millions revolutions precious metal
D(Industrical) 600RPM 60 millions revolutions precious metal
H(High Quality) 1200RPM 150 millions revolutions gold alloy
