Through hole slip ring

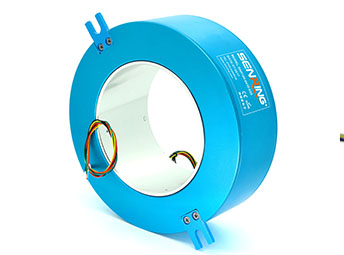

H180298 Series(Hollow Shaft)Through Hole Slip Ring

hole size: 180mm, OD: 298mm

Senring H180298 series through bore slip ring,hole size 180mm(suitable for shaft≤180mm),OD 298mm,H180298 series is ingergal precision slip ring。It can stably transmit 2~108 circuits [email protected] or [email protected] and applied to any devices where requires to trans

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE
Features
Max rotating speed : 150RPM,600RPM,1200RPM(optional);
Standard model supports 2~36 circuits power(0~10A) or 2~108 circuits signal(0~5A),current and channels can be customized;
Contact materil used precious metal,ensure the stablity and working life;
Support transmitting power with signals ;
Integrated structure design, easy installation.
Part no. description
h180298 series H180298 Series(Hollow Shaft)Through Hole Slip Ring slip ring description
Drawing
h180298 series H180298 Series(Hollow Shaft)Through Hole Slip Ring slip ring Drawing
Standard model list
model circuits Length L(mm) model circuits Length L(mm)
10A signal or 0-5A 10A signal or 0-5A
H180298-02S 0 2 71 H180298-36S 0 36 240
H180298-0210 2 0 71 H180298--0610-30S 6 30 240
H180298-03S 0 3 75 H180298-1210-24S 12 24 240
H180298-0310 3 0 75 H180298-3610 36 0 240
H180298-06S 0 6 90 H180298-42S 0 42 270
H180298-0210-04S 2 4 90 H180298-0610-36S 6 36 270
H180298-0410-02S 4 2 90 H180298-1210-30S 12 30 270
H180298-0610 6 0 90 H180298-4210 42 0 270
H180298-12S 0 12 120 H180298-48S 0 48 300
H180298-0210-10S 2 10 120 H180298-0610-42S 6 42 300
H180298-0310-09S 3 9 120 H180298-1210-36S 12 36 300
H180298-0610-06S 6 6 120 H180298-1810-30S 18 30 300
H180298-0810-04S 8 4 120 H180298-P2410-24S 24 24 300
H180298-1010-02S 10 2 120 H180298-4810 48 0 300
H180298-1210 12 0 120 H180298-60S 0 60 360
H180298-18S 0 18 150 H180298-0610-54S 6 54 360
H180298-0210-16S 2 16 150 H180298-0910-51S 9 51 360
H180298-0410-14S 4 14 150 H180298-1210-48S 12 48 360
H180298-0610-12S 6 12 150 H180298-2410-36S 24 36 360
H180298-0810-10S 8 10 150 H180298-72S 0 72 420
H180298-1010-08S 10 8 150 H180298-1210-60S 12 60 420
H180298-1210-06S 12 6 150 H180298-2410-48S 24 48 420
H180298-1410-04S 14 4 150 H180298-3610-36S 36 36 420
H180298-1610-02S 16 2 150 H180298-84S 0 84 480
H180298-24S 0 24 180 H180298-1210-72S 12 72 480
H180298-0410-20S 4 20 180 H180298-2410-60S 24 60 480
H180298-0610-18S 6 18 180 H180298-3610-48S 36 48 480
H180298-1210-12S 12 12 180 H180298-96S 0 96 540
H180298-1810-06S 18 6 180 H180298-1210-84S 12 84 540
H180298-2410 24 0 180 H180298-2410-72S 24 72 540
H180298-30S 0 30 210 H180298-3610-60S 36 60 540
H180298-0610-24S 6 24 210 H180298-4210-54S 42 54 540
H180298-1210-18S 12 18 210 H180298-108S 0 108 600
H180298-1810-12S 18 12 210 H180298-1210-96S 12 96 600
H180298-2410-06S 24 6 210 H180298-2410-84S 24 84 600
H180298-3010 30 0 210 H180298-3610-72S 36 72 600

* Remark: circuits can be combined in parallel for bigger current, N circuits of 10A to get N*10A, such as 2 circuits of 10A in parallel for 20A use.10A circuits No. and signal circuits ( 5A) No. can be customized based on standard products, pls inquiry Senring for details.

Technical Specification of h180298 series slip ring
Mechanicall parameters
Working Life refer to slip ring grade table
Rotating speed refer to slip ring grade table
Working Temp. -30°C~80°C
Work Humidity 0~85% RH
Contact Material refer to slip ring grade table
Housing Material AL alloy
Torque 0.05N.m+0.02N.m/6 wire
IP Grade IP51
Electrical parameters
Spec. Power Signal
Voltage Range 0~600VAC/VDC 0~600VAC/VDC
Insolution Resistance ≥1000MΩ/500VDC ≥1000MΩ/500VDC
Lead wire Spec. AWG17# Silver-plated teflon AWG22# Silver-plated teflon
lead wire length standard length 300mm(can be customized)
Dielectric Strength [email protected],60s
Electrical Noise < 0.01Ω
h180298 Grade Table
Grade code Max rotating speed Working Life Contact Material
C(Standard) 150RPM 20 millions revolutions precious metal
D(Industrical) 600RPM 60 millions revolutions precious metal
H(High Quality) 1200RPM 150 millions revolutions gold alloy
