Through hole slip ring

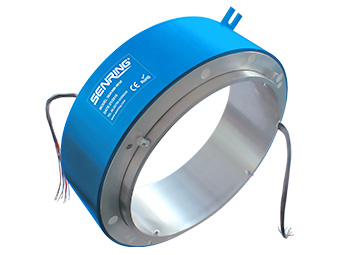

H300430 Series(Hollow Shaft)Through Hole Slip Ring

hole size 300mm, OD 430mm

Senring H300430 series through bore slip ring,hole size 300mm(suitable for shaft≤300mm),OD 430mm。H300430 series is ingergal precision slip ring,It can stably transmit power current(10A,N*10A) or signal(2A)and applied to any devices where requires to trans

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE
Features
Advanced multi-point contact brush technology ensures reliable contact with low friction;
support 1~108circuits power/signal,current and channels can be customized;
Can be customized to combine power/signal transmitting
Support transmitting power with signals ;
Integrated structure design, easy installation.
Part no. description
h300430 series H300430 Series(Hollow Shaft)Through Hole Slip Ring slip ring description
Drawing
h300430 series H300430 Series(Hollow Shaft)Through Hole Slip Ring slip ring Drawing
Standard model list
model circuits Length L(mm) model circuits Length L(mm)
10A signal or 0-5A 10A signal or 0-5A
H300430-02S 0 2 88 H300430-36S 0 36 258
H300430-0210 2 0 88 H300430--0610-30S 6 30 258
H300430-03S 0 3 93 H300430-1210-24S 12 24 258
H300430-0310 3 0 93 H300430-3610 36 0 258
H300430-06S 0 6 108 H300430-42S 0 42 288
H300430-0210-04S 2 4 108 H300430-0610-36S 6 36 288
H300430-0410-02S 4 2 108 H300430-1210-30S 12 30 288
H300430-0610 6 0 108 H300430-4210 42 0 288
H300430-12S 0 12 138 H300430-48S 0 48 318
H300430-0210-10S 2 10 138 H300430-0610-42S 6 42 318
H300430-0310-09S 3 9 138 H300430-1210-36S 12 36 318
H300430-0610-06S 6 6 138 H300430-1810-30S 18 30 318
H300430-0810-04S 8 4 138 H300430-P2410-24S 24 24 318
H300430-1010-02S 10 2 138 H300430-4810 48 0 318
H300430-1210 12 0 138 H300430-60S 0 60 378
H300430-18S 0 18 168 H300430-0610-54S 6 54 378
H300430-0210-16S 2 16 168 H300430-0910-51S 9 51 378
H300430-0410-14S 4 14 168 H300430-1210-48S 12 48 378
H300430-0610-12S 6 12 168 H300430-2410-36S 24 36 378
H300430-0810-10S 8 10 168 H300430-72S 0 72 438
H300430-1010-08S 10 8 168 H300430-1210-60S 12 60 438
H300430-1210-06S 12 6 168 H300430-2410-48S 24 48 438
H300430-1410-04S 14 4 168 H300430-3610-36S 36 36 438
H300430-1610-02S 16 2 168 H300430-84S 0 84 498
H300430-24S 0 24 198 H300430-1210-72S 12 72 498
H300430-0410-20S 4 20 198 H300430-2410-60S 24 60 498
H300430-0610-18S 6 18 198 H300430-3610-48S 36 48 498
H300430-1210-12S 12 12 198 H300430-96S 0 96 558
H300430-1810-06S 18 6 198 H300430-1210-84S 12 84 558
H300430-2410 24 0 198 H300430-2410-72S 24 72 558
H300430-30S 0 30 228 H300430-3610-60S 36 60 558
H300430-0610-24S 6 24 228 H300430-4210-54S 42 54 558
H300430-1210-18S 12 18 228 H300430-108S 0 108 618
H300430-1810-12S 18 12 228 H300430-1210-96S 12 96 618
H300430-2410-06S 24 6 228 H300430-2410-84S 24 84 618
H300430-3010 30 0 228 H300430-3610-72S 36 72 618

* Remark: circuits can be combined in parallel for bigger current, N circuits of 10A to get N*10A, such as 2 circuits of 10A in parallel for 20A use.10A circuits No. and signal circuits ( 5A) No. can be customized based on standard products, pls inquiry Senring for details.

Technical Specification of h300430 series slip ring
Mechanicall parameters
Working Life refer to slip ring grade table
Rotating speed refer to slip ring grade table
Working Temp. -30°C~80°C
Work Humidity 0~85% RH
Contact Material refer to slip ring grade table
Housing Material AL alloy
Torque 0.05N.m+0.02N.m/6 wire
IP Grade IP51
Electrical parameters
Spec. Power Signal
Voltage Range 0~600VAC/VDC 0~600VAC/VDC
Insolution Resistance ≥1000MΩ/500VDC ≥1000MΩ/500VDC
Lead wire Spec. AWG17# Silver-plated teflon AWG22# Silver-plated teflon
lead wire length standard length 300mm(can be customized)
Dielectric Strength [email protected],60s
Electrical Noise < 0.01Ω
h300430 Grade Table
Grade code Max rotating speed Working Life Contact Material
C(Standard) 150RPM 20 millions revolutions precious metal
D(Industrical) 600RPM 60 millions revolutions precious metal
H(High Quality) 1200RPM 150 millions revolutions gold alloy
