Senring H Series Through Hole SlipRing Catalog

01-01-1970

H-Through hole slip ring selection guide

size：10965KbFormat：PDFpages: 73 pages

LANGUAGE: EnglishVisitors：842Type: Through Hole

UPDATED：2018/06

Introduction：

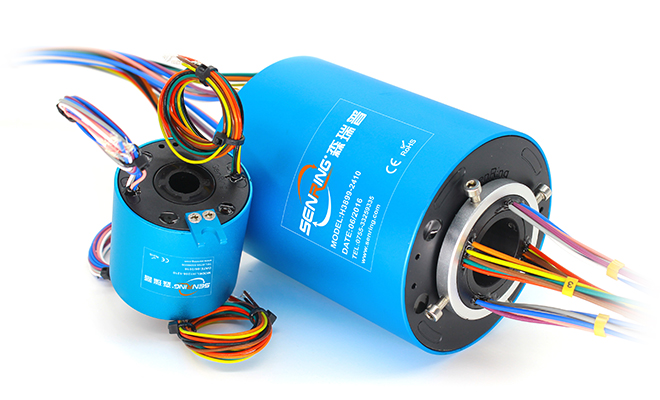

Through hole slip ring also called hollow slip ring with centre hole. it could be applied to any devices where requires to transmit power and signals when need 360° roating

Model list

Mini size（hole size 3 ∼ 8mm）

model #	hole size (mm)	OD (mm)	circuits no.	PDF
H0316	3	16	2~8
H0522	5	22	2~12
H0724	7	24.8	2~12
H0729	7	29	2~12
H0835	8	35	2~12

Small size（12.7 ∼ 20mm）

model #	hole size (mm)	OD (mm)	circuits no.	PDF
H1235	12	35	2~12
H1242	12.7	42	2~12
H1256	12.7	56	2~48
H1256F	12.7	56	2~48
H1286	12.7	86	2~96
H1532	15	32.8	2~24
H2042	20	42	2~12
H2056	20	56	2~12
H2056F	20	56	2~12
H2069	20	69	2~48

Medium size（25.4 ∼ 90mm）

model #	hole size (mm)	OD (mm)	circuits no.	PDF
H2578	25.4	78	2~72
H2586	25.4	86	2~72
H2586F	25.4	86	2~72
H25119	25.4	119	2~144
H3099	30	99	2~72
H3899	38.1	99	2~72
H3899F	38.1	99	2~72
H38119	38.1	119	2~108
H4086	40	86	2~48
H50119	50	86	2~108
H50119F	50	86	2~108
H50130	50	130	2~144
H60119	60	86	2~72
H60130	60	130	2~108
H70140	70	140	2~108
H70158	70	158	2~108
H80158	80	158	2~108
H90185	90	185	2~108

Larger size（100 ∼ 300mm）

model #	hole size (mm)	OD (mm)	circuits no.	PDF
H100185	100	185	2~108
H120215	120	215	2~108
H150248	150	245	2~108
H180298	180	298	2~108
H200320	200	320	2~108
H250396	250	396	2~108
H300430	300	430	2~108
