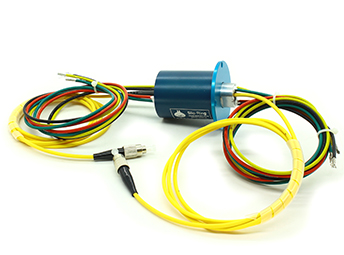

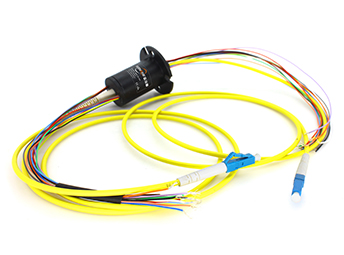

FO108 Series 1 Channel Fiber-Electric Slip Ring Fiber Optic Rotary Joint
1310nm/1550nm
SENRING 1 channel Fiber-Electric slip ring Fiber Optic rotary joint also called 1 channel Fiber Optic slip ring,1 channel fiber(support single mode/multi-mode) can transmit date without loss when 360° unrestricted roating.
- Features
- Support 1 channel fiber optic(support single mode/multi-mode)@ max circuits No.:72;
- length:1310nm;
- Low insertion loss , high speed;
- Non contact, no friction, long working life, >100 million revolutions (20-30 millions revolutions for signal channel model);
- Small size, light weight, high seal grade;
- Optical fiber transmission signal,no leakage, no electromagnetic interference long-distance transmission.
Part no. description
Drawing
Standard model list
| FO108 series 1 channel Fiber-Electric slip ring model selection table; | ||||
| Model | Fiber Channel no. | Power circuits no.（10A） | Signal circuits no.(2A/5A) | Length L(mm) |
| FO108-06S | 1 channel | 0 | 6 | 38 |
| FO108-0610 | 1 channel | 6 | 0 | 38 |
| FO108-12S | 1 channel | 0 | 12 | 55 |
| FO108-1210 | 1 channel | 12 | 0 | 55 |
| FO108-0610-06S | 1 channel | 6 | 6 | 55 |
| FO108-18S | 1 channel | 0 | 18 | 71.5 |
| FO108-1810 | 1 channel | 18 | 0 | 71.5 |
| FO108-24S | 1 channel | 0 | 24 | 88.5 |
| FO108-1210-12S | 1 channel | 12 | 12 | 88.5 |
| FO108-0610-18S | 1 channel | 6 | 18 | 88.5 |
| FO108-30S | 1 channel | 0 | 30 | 104 |
| FO108-36S | 1 channel | 0 | 36 | 122 |
| FO108-42S | 1 channel | 0 | 42 | 140 |
| FO108-48S | 1 channel | 0 | 48 | 156 |
Technical Specification of fo108 series slip ring
| itemtype | Single mode（SM） | multi mode（MM） |
| Bandwidth(nm) | ±50 | |
| Max insertion Loss，23℃(dB) | 2 | 2 |
| Insertion loss fluctuation(dB) | ≤1.5 | ≤1.5 |
| Return loss(dB) | ≥40( without connector) | ≥30( without connector) |
| max power(W) | 0.5 | |
| Max speed(rpm) | 2000 | |
| Working life | >200 million | |
| Work Temperature(℃) | -20~60 | |
| Storage temperature(℃) | -50~85 | |
| spec | data | |
| power | signal | |
| voltage range | 0~440VAC/VDC | 0~440VAC/VDC |
| insulation resistance | ≥1000mΩ/500VDC | ≥1000mΩ/500VDC |
| lead wire spec. | AWG17# Silver-plated teflon | AWG22# Silver-plated teflon |
| lead wire length | standard 300mm（can be customized） | |
| Dielectric Strength | 500VAC@50Hz，60s | |
| Electrical noise | <0.01Ω | |
| Mechanical Data | |
| spec | data |
| working life | 8000 millions for ref(depends on working conditions) |
| Rotating speed | 250RPM |
| Work Temperature | -20℃~60℃ |
| work humidity | 0~85% RH |
| contact material | precious metal |
| housing material | aluminum alloy |
| torque | 0.1N.m;+0.03N.m/6 circuits |
| IP grade | IP51 |
