Fiber Optic Rotary Joint

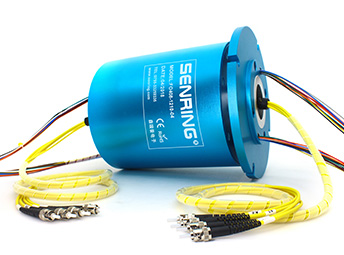

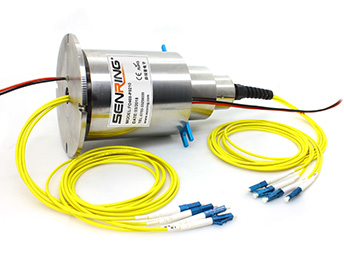

FO408 Series 4 Channels Fiber Optic Rotary Joint

1310nm/1550nm

SenRing FO408 series Fiber Optic rotary joint,4 channels fiber(support single mode/multi-mode) can transmit date without loss when 360° unrestricted roating.Specially suitable for some applications which requires to keep unrestricted,continuous or intermi

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE
Features
Can transmit single or multi channels fiber optic signal;
Fiber connector : FC、SC、ST、SMA or LC (PC /APC),etc optional;
Can be combined to transmit power, control signal, micropower signal of computer antomative control;
Can be combined with the traditional electric slip ring to transmit power and high-speed data;
Non contact, no friction, long working life, >100 million revolutions (20-30 millions revolutions for signal channel model);
Safe and reliable, no electromagnetic interference long-distance transmission.
Part no. description
fo408 series FO408 Series 4 Channels Fiber Optic Rotary Joint slip ring description
Drawing
fo408 series FO408 Series 4 Channels Fiber Optic Rotary Joint slip ring Drawing
Standard model list
FO408 series 4 channels Fiber-Electric slip ring model selection table;
Model Fiber Channel no. Power circuits no.(10A) Signal circuits no.(2A/5A) Length L(mm)
FO408-02S 4 0 2 32
FO408-0210 4 2 0 32
FO408-03S 4 0 3 36
FO408-0310 4 3 0 36
FO408-06S 4 0 6 48
FO408-0210-04S 4 2 4 48
FO408-0410-02S 4 4 2 48
FO408-0610 4 6 0 48
FO408-12S 4 0 12 72
FO408-0210-10S 4 2 10 72
FO408-0310-09S 4 3 9 72
FO408-0610-06S 4 6 6 72
FO408-0810-04S 4 8 4 72
FO408-1010-02S 4 10 2 72
FO408-1210 4 12 0 72
FO408-18S 4 0 18 96
FO408-0210-16S 4 2 16 96
FO408-0410-14S 4 4 14 96
FO408-0610-12S 4 6 12 96
FO408-0810-10S 4 8 10 96
FO408-1010-08S 4 10 8 96
FO408-1210-06S 4 12 6 96
FO408-1410-04S 4 14 4 96
FO408-1610-02S 4 16 2 96
FO408-24S 4 0 24 120
FO408-0410-20S 4 4 20 120
FO408-0610-18S 4 6 18 120
FO408-1210-12S 4 12 12 120
FO408-1810-06S 4 18 6 120
FO408-2410 4 24 0 120
FO408-30S 4 0 30 144
FO408-0610-24S 4 6 24 144
FO408-1210-18S 4 12 18 144
FO408-1810-12S 4 18 12 144
FO408-2410-06S 4 24 6 144
FO408-3010 4 30 0 144
FO408-36S 4 0 36 168
FO408-0610-30S 4 6 30 168
FO408-1210-24S 4 12 24 168
FO408-3610 4 36 0 168
FO408-42S 4 0 42 192
FO408-0610-36S 4 6 36 192
FO408-1210-30S 4 12 30 192
FO408-48S 4 0 48 216
FO408-0610-42S 4 6 42 216
FO408-0910-39S 4 9 39 216
FO408-1210-36S 4 12 36 216
FO408-1810-30S 4 18 30 216
FO408-2410-24S 4 24 24 216
FO408-60S 4 0 60 264
FO408-0610-54S 4 6 54 264
FO408-0910-51S 4 9 51 264
FO408-1210-48S 4 12 48 264
FO408-72S 4 0 72 312
Technical Specification of fo408 series slip ring
 itemtype Single mode(SM) multi mode(MM)
Bandwidth(nm) ±50
Max insertion Loss,23℃(dB) 4 3.5
Insertion loss fluctuation(dB) ≤2 ≤1
Return loss(dB) ≥50(APC) ≥40(PC)
max power(W) 0.5
Max speed(rpm) 400
Working life >200 million
Work Temperature(℃) -20~60
Storage temperature(℃) -50~85

spec data
  power signal
voltage range 0~440VAC/VDC 0~440VAC/VDC
insulation resistance ≥1000mΩ/500VDC ≥1000mΩ/500VDC
lead wire spec. AWG17# Silver-plated teflon AWG22# Silver-plated teflon
lead wire length standard 300mm(can be customized)
Dielectric Strength 500VAC@50Hz,60s
Electrical noise <0.01Ω

Mechanical Data
spec data
working life 8000 millions for ref(depends on working conditions)
Rotating speed 250RPM
Work Temperature -20℃~60℃
work humidity 0~85% RH
contact material precious metal
housing material aluminum alloy
torque 0.1N.m;+(0.03N.m/6 circuits)
IP grade IP51
