Fiber Optic Rotary Joint

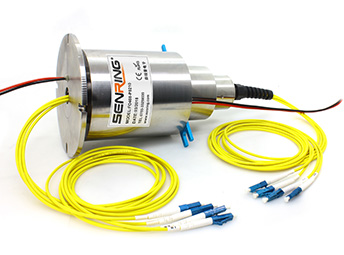

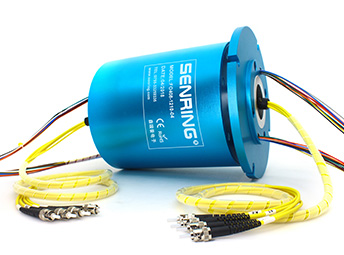

FO409 Series 4 Channels Fiber-Electric Slip Ring

1310nm/1550nm

4 channels Fiber(support single mode/multi-mode) can be combined to transmit 1~24 circuits signal.Suitable for some applications which requires to keep 360° unrestricted,continuous or intermittent rotating and transmit mass data/signal from static side to

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE
Features
Can transmit single or multi channels fiber optic signal;
Fiber connector : FC、SC、ST、SMA or LC (PC /APC),etc optional;
Can be combined to transmit power, control signal, micropower signal of computer antomative control;
Can be combined with the traditional electric slip ring to transmit power and high-speed data;
Non contact, no friction, long working life, >100 million revolutions (20-30 millions revolutions for signal channel model);
Safe and reliable, no electromagnetic interference long-distance transmission.
Part no. description
fo409 series FO409 Series 4 Channels Fiber-Electric Slip Ring slip ring description
Drawing
fo409 series FO409 Series 4 Channels Fiber-Electric Slip Ring slip ring Drawing
Standard model list
FO409 series 4 channels Fiber-Electric slip ring model selection table;
Model Fiber Channel no. power circuits(10A) signal/5A Length L(mm)
FO409-02S 4 0 2 34
FO409-0210 4 2 0 34
FO409-03S 4 0 3 34
FO409-0310 4 3 0 34
FO409-06S 4 0 6 34
FO409-0210-04S 4 2 4 34
FO409-0410-02S 4 4 2 34
FO409-0610 4 6 0 34
FO409-12S 4 0 12 52
FO409-0210-10S 4 2 10 52
FO409-0310-09S 4 3 9 52
FO409-0610-06S 4 6 6 52
FO409-0810-04S 4 8 4 52
FO409-1010-02S 4 10 2 52
FO409-1210 4 12 0 52
FO409-18S 4 0 18 68.5
FO409-0210-16S 4 2 16 68.5
FO409-0610-12S 4 6 12 68.5
FO409-0810-10S 4 8 10 68.5
FO409-1010-08S 4 10 8 68.5
FO409-1210-06S 4 12 6 68.5
FO409-1610-02S 4 16 2 68.5
FO409-24S 4 0 24 68.5
FO409-0410-20S 4 4 20 85.5
FO409-0610-18S 4 6 18 85.5
Technical Specification of fo409 series slip ring
 itemtype Single mode(SM) multi mode(MM)
Bandwidth(nm) ±50
Max insertion Loss,23℃(dB) 4 3.5
Insertion loss fluctuation(dB) ≤2 ≤1
Return loss(dB) ≥50(PC) ≥40(PC)
max power(W) 0.5
Max speed(rpm) 400
Working life >200 million
Work Temperature(℃) -20~60
Storage temperature(℃) -50~85

spec data
  power signal
voltage range 0~440VAC/VDC 0~440VAC/VDC
insulation resistance ≥1000mΩ/500VDC ≥1000mΩ/500VDC
lead wire spec. AWG17# Silver-plated teflon AWG22# Silver-plated teflon
lead wire length standard 300mm(can be customized)
Dielectric Strength 500VAC@50Hz,60s
Electrical noise <0.01Ω

Mechanical Data
spec data
working life 8000 millions for ref(depends on working conditions)
Rotating speed 250RPM
Work Temperature -20℃~60℃
work humidity 0~85% RH
contact material precious metal
housing material aluminum alloy
torque 0.1N.m;+0.03N.m/6 circuits
IP grade IP51
