Fiber Optic Rotary Joint

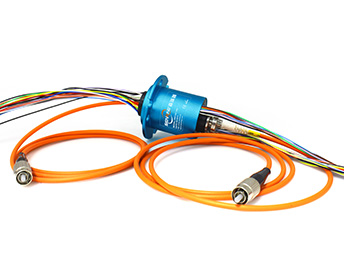

FO102 Series 1 Channel Fiber-Electric Slip Ring Fiber Optic Rotary Joint

1310nm/1550nm

SENRING 1 channel Fiber-Electric slip ring Fiber Optic rotary joint also called 1 channel Fiber Optic slip ring,1 channel fiber(support single mode/multi-mode) can transmit date without loss when 360° unrestricted roating.

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE
Features
Can transmit single channel fiber optic signal when 360° roating;
length:1310nm;
Low insertion loss , high speed;
Non contact, no friction, long working life, >100 million revolutions (20-30 millions revolutions for signal channel model);
Can be combined to transmit power, control signal, micropower signal of computer antomative control ;
Can be combined with the traditional electric slip ring to transmit power and high-speed data;
Small size, light weight, high seal grade;
Optical fiber transmission signal,no leakage, no electromagnetic interference long-distance transmission.

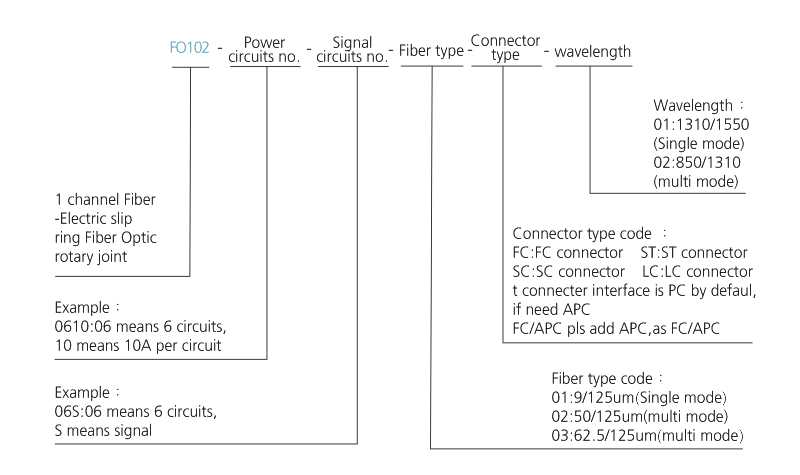

Part no. description
fo102 series FO102 Series 1 Channel Fiber-Electric Slip Ring Fiber Optic Rotary Joint slip ring description

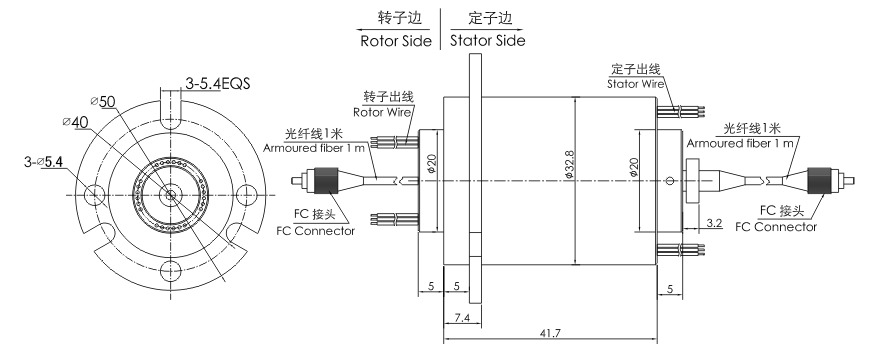

Drawing
fo102 series FO102 Series 1 Channel Fiber-Electric Slip Ring Fiber Optic Rotary Joint slip ring Drawing
Standard model list
FO102 - compact size+slip ring model selection table;
Model Fiber Channel no. Power circuits no.(10A) Signal circuits no.(2A/5A) Length L(mm)
FO102-06S 1 channel 0 6 41.7
FO102-12S 1 channel 0 12 41.7
FO102-18S 1 channel 0 18 41.7
FO102-24S 1 channel 0 24 41.7
FO102-30S 1 channel 0 30 41.7
Technical Specification of fo102 series slip ring
 itemtype Single mode(SM) multi mode(MM)
Bandwidth(nm) ±50
Max insertion Loss,23℃(dB) 1.2 0.7
Insertion loss fluctuation(dB) ≤0.6 ≤0.4
Return loss(dB) ≥55( without connector) ≥40( without connector)
max power(W) 0.5
Max speed(rpm) 2000
Working life >200 million
Work Temperature(℃) -20℃~60℃
Storage temperature(℃) -20℃~60℃

spec data
  power signal
voltage range 0~440VAC/VDC 0~440VAC/VDC
insulation resistance ≥1000mΩ/500VDC ≥1000mΩ/500VDC
lead wire spec. AWG26# Silver-plated teflon AWG26# Silver-plated teflon
lead wire length standard 300mm(can be customized)
Dielectric Strength [email protected],60s
Electrical noise <0.01Ω

Mechanical Data
spec data
working life 8000 millions for ref(depends on working conditions)
Rotating speed 250RPM
Work Temperature -30℃~80℃
work humidity 0~85% RH
contact material precious metal
housing material aluminum alloy
torque 0.1N.m;+0.03N.m/6 circuits
IP grade IP51
