SENRING
Fiber Optic Rotary Joint

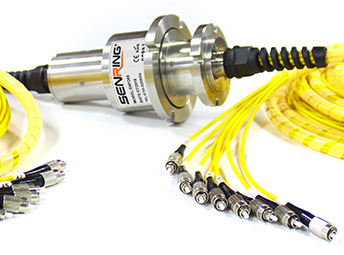

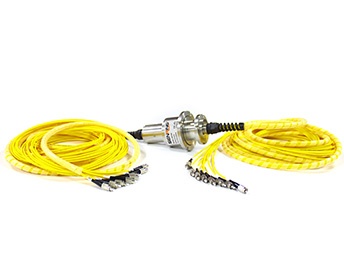

FO100B Single Channel Fiber Optic Slip Ring

1310nm/1550nm

1 channel fiber(support single mode/multi-mode),suitable for devices need to unlimited,continuous or intermittent rotation and transmit large capacity data or signal from stator side to rotor side.With the advantages of improving mechanical performance, s

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE
Features
Can transmit single channel or multi channels signal,multi-channel rotation;
Fiber connector : FC、SC、ST、SMA or LC (PC /APC),etc optional;
Can be combined to transmit power, control signal, micropower signal of computer antomative control ;
Can be combined with the traditional electric slip ring to transmit power and high-speed data.;
Non contact, no friction, long working life, >100 million revolutions (20-30 millions revolutions for signal channel model);
Safe and reliable, no electromagnetic interference long-distance transmission.
Part no. description
fo100b series FO100B Single Channel Fiber Optic Slip Ring slip ring description
Drawing
fo100b series FO100B Single Channel Fiber Optic Slip Ring slip ring Drawing
Technical Specification of fo100b series slip ring
 itemtype Single mode(SM) multi mode(MM)
Bandwidth(nm) ±50
Max insertion Loss,23℃(dB) 1.2 0.7
Insertion loss fluctuation(dB) ≤0.6 ≤0.4
Return loss(dB) ≥55( without connector) ≥40( without connector)
max power(W) 0.5
Max speed(rpm) 2000
Working life >200 million
Work Temperature(℃) -20℃~60℃
Storage temperature(℃) -20℃~60℃
IP grade Standard IP65 (IP68 optional)
