Fiber Optic Rotary Joint

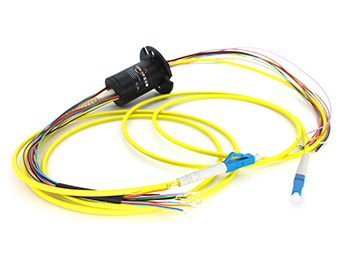

FO109 Series 1 Channel Fiber-Electric Slip Ring

1310nm/1550nm

1 channel fiber(support single mode/multi-mode), can transmit 1 channel [email protected]~72 circuits signal at the same time.Suitable for some applications which requires to keep 360° unrestricted,continuous or intermittent rotating and transmit mass data/signal f

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE
Features
Can transmit single or multi channels fiber optic signal;
Fiber connector : FC、SC、ST、SMA or LC (PC /APC),etc optional;
Can be combined to transmit power, control signal, micropower signal of computer antomative control;
Can be combined with the traditional electric slip ring to transmit power and high-speed data;
Can be combined to transmit power, control signal, micropower signal of computer antomative control ;
Safe and reliable, no electromagnetic interference long-distance transmission.
Part no. description
fo109 series FO109 Series 1 Channel Fiber-Electric Slip Ring slip ring description
Drawing
fo109 series FO109 Series 1 Channel Fiber-Electric Slip Ring slip ring Drawing
Standard model list
FO109 series 1 channel Fiber-Electric slip ring model selection table;
Model Fiber Channel no. Power circuits no.(10A) Signal circuits no.(2A/5A) Length L(mm)
FO109-02S 1 0 2 32
FO109-0210 1 2 0 32
FO109-03S 1 0 3 36
FO109-0310 1 3 0 36
FO109-06S 1 0 6 48
FO109-0210-04S 1 2 4 48
FO109-0410-02S 1 4 2 48
FO109-1210-12S 1 12 12 120
FO109-1810-06S 1 18 6 120
FO109-2410 1 24 0 120
FO109-30S 1 0 30 144
FO109-0610-24S 1 6 24 144
FO109-1210-18S 1 12 18 144
FO109-1810-12S 1 18 12 144
FO109-0610 1 6 0 48
FO109-12S 1 0 12 72
FO109-0210-10S 1 2 10 72
FO109-0310-09S 1 3 9 72
FO109-0610-06S 1 6 6 72
FO109-0810-04S 1 8 4 72
FO109-1010-02S 1 10 2 72
FO109-18S 1 0 18 96
FO109-0210-16S 1 2 16 96
FO109-0410-14S 1 4 14 96
FO109-0610-12S 1 6 12 96
FO109-0810-10S 1 8 10 96
FO109-1010-08S 1 10 8 96
FO109-1210-06S 1 12 6 96
FO109-1410-04S 1 14 4 96
FO109-1610-02S 1 16 2 96
FO109-24S 1 0 24 120
FO109-0410-20S 1 4 24 120
FO109-0610-18S 1 6 18 120
FO109-2410-06S 1 24 6 144
FO109-3010 1 30 0 144
FO109-36S 1 0 36 168
FO109-0610-30S 1 6 30 168
FO109-1210-24S 1 12 24 168
FO109-3610 1 36 0 168
FO109-42S 1 0 42 196
FO109-0610-36S 1 6 36 192
FO109-1210-30S 1 12 30 192
FO109-48S 1 0 48 216
FO109-0610-42S 1 6 42 216
FO109-0910-39S 1 9 39 216
FO109-1210-36S 1 12 36 216
FO109-1810-30S 1 18 30 216
FO109-2410-24S 1 24 24 216
FO109-60S 1 0 60 264
FO109-0610-54S 1 6 54 264
FO109-0910-51S 1 9 51 364
FO109--1210-48S 1 12 48 364
FO109-72S 1 0 72 312
FO109-1210 1 12 0 72
Technical Specification of fo109 series slip ring
 itemtype Single mode(SM) multi mode(MM)
Bandwidth(nm) ±50
Max insertion Loss,23℃(dB) 1.2 0.7
Insertion loss fluctuation(dB) ≤0.6 ≤0.4
Return loss(dB) ≥55( without connector) ≥40( without connector)
max power(W) 0.5
Max speed(rpm) 400
Working life >200 million
Work Temperature(℃) -20℃~60℃
Storage temperature(℃) -20℃~60℃

spec data
  power signal
voltage range 0~440VAC/VDC 0~440VAC/VDC
insulation resistance ≥1000mΩ/500VDC ≥1000mΩ/500VDC
lead wire spec. AWG17# Silver-plated teflon AWG22# Silver-plated teflon
lead wire length standard 300mm(can be customized)
Dielectric Strength [email protected],60s
Electrical noise <0.01Ω

Mechanical Data
spec data
working life 8000 millions for ref(depends on working conditions)
Rotating speed 250RPM
Work Temperature -30℃~80℃
work humidity 0~85% RH
contact material precious metal
housing material aluminum alloy
storque 0.1N.m;+0.03N.m/6 circuits
IP grade IP51
