SENRING
Fiber Optic Rotary Joint

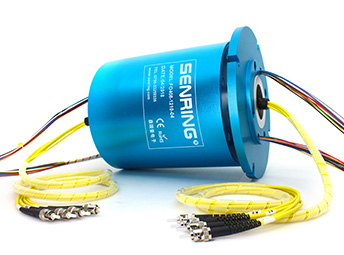

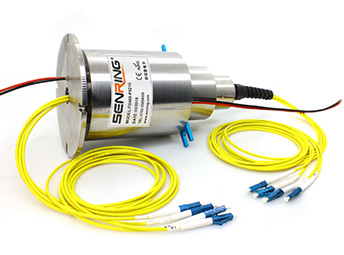

FO208 Series 2 Channels Fiber-Electric Slip Ring Fiber Optic Rotary Joint

1310nm/1550nm

2 channels Fiber(support single mode/multi-mode)can transmit 2 channelS [email protected]~72 circuits signal at the same time.Suitable for some applications which requires to keep 360° unrestricted,continuous or intermittent rotating and transmit mass data/signal f

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE
Features
Fiber connector : FC、SC、ST、SMA or LC (PC /APC),etc optional;
Can be combined to transmit power, control signal, micropower signal of computer antomative control;
Can be combined with the traditional electric slip ring to transmit power and high-speed data;
Non contact, no friction, long working life, >100 million revolutions (20-30 millions revolutions for signal channel model);
Safe and reliable, no electromagnetic interference long-distance transmission.
Part no. description
fo208 series FO208 Series 2 Channels Fiber-Electric Slip Ring Fiber Optic Rotary Joint slip ring description
Drawing
fo208 series FO208 Series 2 Channels Fiber-Electric Slip Ring Fiber Optic Rotary Joint slip ring Drawing
Standard model list
FO208 series 2 channelS Fiber Optic @ Fiber-Electric slip ring model selection table;
Model Fiber Channel no. Power circuits no.(10A) Signal circuits no.(2A/5A) Length L(mm)
FO208-02S 2 0 2 32
FO208-0210 2 2 0 32
FO208-03S 2 0 3 36
FO208-0310 2 3 0 36
FO208-06S 2 0 6 48
FO208-0210-04S 2 2 4 48
FO208-0410-02S 2 4 2 48
FO208-0610 2 6 0 48
FO208-12S 2 0 12 72
FO208-0210-10S 2 2 10 72
FO208-0310-09S 2 3 9 72
FO208-0610-06S 2 6 6 72
FO208-0810-04S 2 8 4 72
FO208-1010-02S 2 10 2 72
FO208-1210 2 12 0 72
FO208-18S 2 0 18 96
FO208-0210-16S 2 2 16 96
FO208-0410-14S 2 4 14 96
FO208-0610-12S 2 6 12 96
FO208-0810-10S 2 8 10 96
FO208-1010-08S 2 10 8 96
FO208-1210-06S 2 12 6 96
FO208-1410-04S 2 14 4 96
FO208-1610-02S 2 16 2 96
FO208-24S 2 0 24 120
FO208-0410-20S 2 4 20 120
FO208-0610-18S 2 6 18 120
FO208-1210-12S 2 12 12 120
FO208-1810-06S 2 18 6 120
FO208-2410 2 24 0 120
FO208-30S 2 0 30 144
FO208-0610-24S 2 6 24 144
FO208-1210-18S 2 12 18 144
FO208-1810-12S 2 18 12 144
FO208-2410-06S 2 24 6 144
FO208-3010 2 30 0 144
FO208-36S 2 0 36 168
FO208-0610-30S 2 6 30 168
FO208-1210-24S 2 12 24 168
FO208-3610 2 36 0 168
FO208-42S 2 0 42 192
FO208-0610-36S 2 6 36 192
FO208-1210-30S 2 12 30 192
FO208-48S 2 0 48 216
FO208-0610-42S 2 6 42 216
FO208-0910-39S 2 9 39 216
FO208-1210-36S 2 12 36 216
FO208-1810-30S 2 18 30 216
FO208-2410-24S 2 24 24 216
FO208-60S 2 0 60 264
FO208-0610-54S 2 6 54 264
FO208-0910-51S 2 9 51 264
FO208-1210-48S 2 12 48 264
FO208-72S 2 0 72 312
Technical Specification of fo208 series slip ring
 itemtype Single mode(SM) multi mode(MM)
Bandwidth(nm) ±50
Max insertion Loss,23℃(dB) 4 3.5
Insertion loss fluctuation(dB) ≤2 ≤1
Return loss(dB) ≥50(APC) ≥40(PC)
max power(W) 0.5
Max speed(rpm) 400
Working life >200 million
Work Temperature(℃) -20℃~60℃
Storage temperature(℃) -20℃~60℃

spec data
  power signal
voltage range 0~440VAC/VDC 0~440VAC/VDC
insulation resistance ≥1000mΩ/500VDC ≥1000mΩ/500VDC
lead wire spec. AWG17# Silver-plated teflon AWG22# Silver-plated teflon
lead wire length standard 300mm(can be customized)
Dielectric Strength [email protected],60s
Electrical noise <0.01Ω

Mechanical Data
spec data
working life 8000 millions for ref(depends on working conditions)
Rotating speed 250RPM
Work Temperature -30℃~80℃
work humidity 0~85% RH
contact material precious metal
housing material aluminum alloy
torque s0.1N.m;+0.03N.m/6 circuits
IP grade IP51
