SENRING
Fiber Optic Rotary Joint

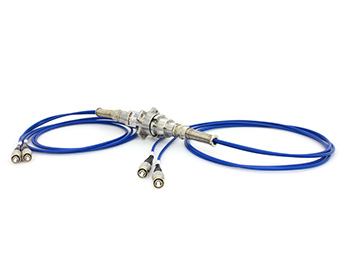

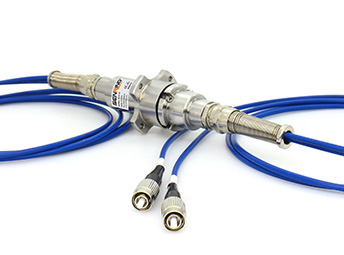

FO200C Series 2 Channels Fiber Optic Slip Ring

1310nm/1550nm

2 channels Fiber(support single mode/multi-mode).Suitable for some applications which requires to keep 360° unrestricted,continuous or intermittent rotating and transmit mass data/signal from static side to rotation side, which can improve mechanical perf

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE
Features
Can transmit single or multi channels fiber optic signal;
Fiber connector : FC、SC、ST、SMA or LC (PC /APC),etc optional;
Can be combined to transmit power, control signal, micropower signal of computer antomative control;
Can be combined with the traditional electric slip ring to transmit power and high-speed data;
Non contact, no friction, long working life, >100 million revolutions (20-30 millions revolutions for signal channel model);
Safe and reliable, no electromagnetic interference long-distance transmission.
Part no. description
fo200c series FO200C Series 2 Channels Fiber Optic Slip Ring slip ring description
Drawing
fo200c series FO200C Series 2 Channels Fiber Optic Slip Ring slip ring Drawing
Technical Specification of fo200c series slip ring
 itemtype Single mode(SM) multi mode(MM)
Bandwidth(nm) ±50
Max insertion Loss,23℃(dB) 4 3.5
Insertion loss fluctuation(dB) ≤2 ≤1
Return loss(dB) ≥55(APC) ≥40(PC)
max power(W) 0.5
Max speed(rpm) 2000
Working life >200 million
Work Temperature(℃) -20℃~60℃
Storage temperature(℃) -20℃~60℃
