Hollow Shaft Rotary Union

3304006 Series Two Passage Hollow Shaft Rotary Unions

4 Passage,hollow shaft rotary union

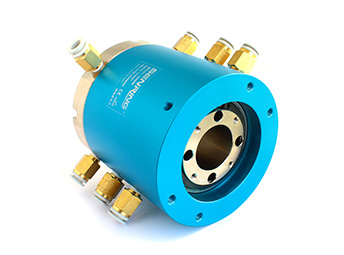

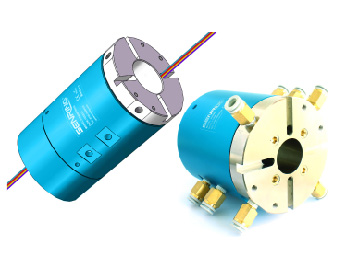

SENRING two passage Hollow Shaft Rotary Unions 3304006 series is 4 in 4 out hollow bore rotary union,standard hollow shaft size 30mm,other hollow shaft size can be customized,Can be installed with mechanical arm to rotate together.3304006 series hollow ro

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE
Features
Can be installed with mechanical arm to rotate together ;
Support transmit mixed power and signals,such as USB,HDMI, 1000M ethernet, VGA, DVI, coaxial RF (high frequency),servo motor signal,industrial bus slip rings...etc;
360° transmit compressed air,steam,vacuum,negative pressure,positive pressure...etc;
Max. Pressure(s):1Mpa (vacuum: -1.5kPa, higher Pressure can be customized);
Support 2 G1/8" port for 6~8mm pipes;
Standard hollow shaft size 30mm.
Part no. description
3304006 series 3304006 Series Two Passage Hollow Shaft Rotary Unions slip ring description
Drawing
3304006 series 3304006 Series Two Passage Hollow Shaft Rotary Unions slip ring Drawing
Standard model list
Model Passages(Gas) Port Size Pipe Size
3304006 4 passages G1/8" 6~8mm
Drawing
Standard model list
Model Passages(Gas) Port Size Pipe Size Power Circuits(10A) Signal Circuits(5A) Length L(mm)
3304006-0605 4 Passages G1/8" 6~8mm 0 6 48
3304006-0610 4 Passages G1/8" 6~8mm 6 0 48
3304006-1205 4 Passages G1/8" 6~8mm 0 12 72
3304006-1210 4 Passages G1/8" 6~8mm 12 0 72
3304006-1805 4 Passages G1/8" 6~8mm 0 18 96
3304006-1810 4 Passages G1/8" 6~8mm 18 0 96
3304006-2405 4 Passages G1/8" 6~8mm 0 24 120
3304006-2410 4 Passages G1/8" 6~8mm 24 0 120
Technical Specification of 3304006 series slip ring
Passages(Gas) 4 passages
Pipe Size 6~8mm pipe, G1/8" Port
Mechanical Data
spec. data
Working life 20millions for ref(depends on working conditions)
Max. Operating Speed 250RPM continously, 1000RPM intermittently
Working temp. -30°C~80°C
Work humidity 0~85% RH
Contact Materia Precious Metal
Housing Material aluminum alloy
IP Grade IP51
Max. Operating Pressure Positive Pressure 1Mpa, Vacuum -90kPa
torque <0.85N.m
Electrical Data
spec. data
Power Signal
Voltage range 0~440VAC/VDC 0~440VAC/VDC
Insolution resistance <500MΩ/300VDC <500MΩ/300VDC
Lead wire spec. AWG17# Silver-plated teflon wire AWG22# Silver-plated teflon wire
Lead wire length standard 250mm
(can be customized)
Insolution resistance 500VAC@50Hz,6s
Electrical noise <0.01Ω

3304006 Grade Table
ring no. 1 2 3 4 5 6 7 8 9 10 11 12
color black brown red orange yellow green blue purple grey white pink lightblue
