SENRING
Hollow Shaft Rotary Union

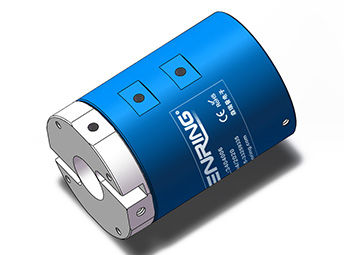

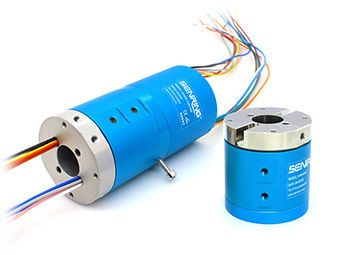

3404004 Series 4 Passage Hollow Shaft Rotary Unions

4 Gas Passage,Can Combine Transfer Electrical.Power/Signal,M5,Support 4~6mm Pipes,standard hollow shaft size 20mm.

SENRING 4 passage Hollow Shaft Rotary Unions 3404004 series is 4 in 4 out hollow bore rotary union,standard hollow shaft size 20mm,other hollow shaft size can be customized.

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE
Features
Can be installed with mechanical arm to rotate together ;
Support transmit mixed power and signals,such as USB,HDMI, 1000M ethernet, VGA, DVI, coaxial RF (high frequency),servo motor signal,industrial bus slip rings...etc;
360° transmit compressed air,steam,vacuum,negative pressure,positive pressure...etc;
Max. Pressure(s):1Mpa (vacuum: -100kPa, higher Pressure can be customized);
Support 4 M5 port for 4~6mm pipes;
Standard hollow shaft size 20mm.
Part no. description
3404004 series 3404004 Series 4 Passage Hollow Shaft Rotary Unions slip ring description
Drawing
3404004 series 3404004 Series 4 Passage Hollow Shaft Rotary Unions slip ring Drawing
Standard model list
Model Passages(Gas) Port Size Pipe Size
3404004 4 passages M5 4∼6mm
Drawing
Standard model list
Model Passages(Gas) Port Size Pipe Size Power(10A) Signal(5A) Length L(mm)
3404004-0605 4Passages M5 4∼6mm 0 6 34.5
3404004-0610 4 Passages M5 4∼6mm 6 0 34.5
3404004-1205 4 Passages M5 4∼6mm 0 12 52.5
3404004-1210 4 Passages M5 4∼6mm 12 0 52.5
Technical Specification of 3404004 series slip ring
Passages(Gas) 4 passages
Pipe Size 4~6mm pipe, M5quot; Port
Mechanical Data
spec. data
Working life 20millions for ref(depends on working conditions)
Max. Operating Speed 250RPM continously, 1000RPM intermittently
Working temp. -30°C~80°C
Work humidity 0~85% RH
Contact Materia Precious Metal
Housing Material aluminum alloy
IP Grade IP51
Max. Operating Pressure Positive Pressure 1Mpa, Vacuum -90kPa
torque <0.4N.m
Electrical Data
spec. data
Power Signal
Voltage range 0~440VAC/VDC 0~440VAC/VDC
Insolution resistance <500MΩ/300VDC <500MΩ/300VDC
Lead wire spec. AWG17# Silver-plated teflon wire AWG22# Silver-plated teflon wire
Lead wire length standard 250mm
(can be customized)
Insolution resistance 500VAC@50Hz,6s
Electrical noise <0.01Ω
