Hollow Shaft Rotary Union

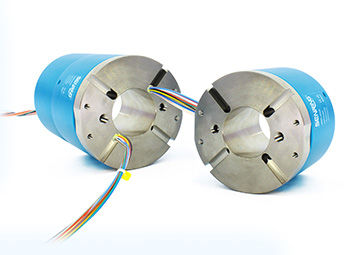

3502006 Series 2 Passage Hollow Shaft Rotary Unions

2 Gas Passage,Can Combine Transfer Electrical.Power/Signal,G1/8",Support 6~8mm Pipes,standard hollow shaft size 50mm.

SENRING 2 passage Hollow Shaft Rotary Unions 3502006 series is 2 in 2 out hollow bore rotary union,standard hollow shaft size 50mm,other hollow shaft size can be customized.

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE
Features
Can be installed with mechanical arm to rotate together ;
Support transmit mixed power and signals,such as USB,HDMI, 1000M ethernet, VGA, DVI, coaxial RF (high frequency),servo motor signal,industrial bus slip rings...etc;
360° transmit compressed air,steam,vacuum,negative pressure,positive pressure...etc;
Max. Pressure(s):1Mpa (vacuum: -100kPa, higher Pressure can be customized);
Support 2 G1/8" port for 6~8mm pipes;
Standard hollow shaft size 50mm.
Part no. description
3502006 series 3502006 Series 2 Passage Hollow Shaft Rotary Unions slip ring description
Drawing
3502006 series 3502006 Series 2 Passage Hollow Shaft Rotary Unions slip ring Drawing
Standard model list
ModelPassages(Gas)Port SizePipe Size
35020062 passagesG1/8"6∼8mm
Drawing
Standard model list
Model Passages(Gas) Port Size Pipe Size Power Circuits(10A) Signal Circuits(5A) Length L(mm)
3502006-1205 2 Passages G1/8" 6∼8mm 0 12 74
3502006-1210 2 Passages G1/8" 6∼8mm 12 0 74
3502006-1805 2 Passages G1/8" 6∼8mm 0 18 100
3502006-1810 2 Passages G1/8" 6∼8mm 18 0 100
3502006-2405 2 Passages G1/8" 6∼8mm 0 24 124
3502006-2410 2 Passages G1/8" 6∼8mm 24 0 124
Technical Specification of 3502006 series slip ring
Passages(Gas) 2 passages
Pipe Size 6~8mm pipe, G1/8"; Port
Mechanical Data
spec. data
Working life 20millions for ref(depends on working conditions)
Max. Operating Speed 250RPM continously, 1000RPM intermittently
Working temp. -30°C~80°C
Work humidity 0~85% RH
Contact Materia Precious Metal
Housing Material aluminum alloy
IP Grade IP51
Max. Operating Pressure Positive Pressure 1Mpa, Vacuum -90kPa
torque <0.2N.m
Electrical Data
spec. data
Power Signal
Voltage range 0~440VAC/VDC 0~440VAC/VDC
Insolution resistance <500MΩ/300VDC <500MΩ/300VDC
Lead wire spec. AWG17# Silver-plated teflon wire AWG22# Silver-plated teflon wire
Lead wire length standard 250mm
(can be customized)
Insolution resistance [email protected],6s
Electrical noise <0.01Ω
