M250 Series OD 25mm Compact Slip Ring(Capsule Slip Ring)

OD 25mm ,1~56 circuits signal@2A

SenRing M250 series capsule slip ring is medium compact slip ring,OD 25mm.It is reseach and development of specializing consume electronics,security industry,revolving stage of lights industry, and the material used gold to gold contact,ensure the stablity and working life.

Features
OD 25mm;
Low torque,less than 0.06N.m;
standard 2~56 circuits signal(each 2A);
Standard product, stocks available;
A flange type installation,easy installation;

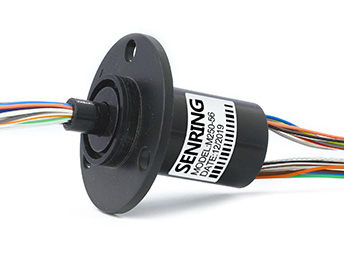

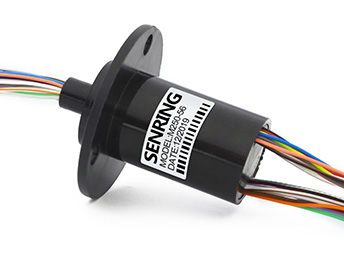

OD 25mm 56wires medium compact slip ring
Drawing
 OD 25毫米M250 series 帽式滑环 Drawing
Part no. description
 OD 25毫米M250 series 帽式滑环选型说明
Standard model list
model Circuits NO. Max current/circuit lead wire spec. Length L(mm)
M250-56562A Silver-plated teflon AWG26#87.5
Technical Specification of the slip ring
Mechanicall parameters Electrical parameters
Working Life 10millions for ref(depends on working conditions) Spec. Power Signal
Rotating speed 250RPM Voltage Range 0~240VAC/VDC 0~240VAC/VDC
Working Temp. -30°C~80°C Insolution Resistance ≥200MΩ/300VDC ≥200MΩ/300VDC
Work Humidity 0~85% RH Lead wire Spec. AWG26# Silver-plated teflon AWG26# Silver-plated teflon
Contact Material precious metal:gold-gold lead wire length standard length 150mm(can be customized)
Housing Material engineered plastic Dielectric Strength 300VAC@50Hz,60s
Torque 0.05N.m+0.01N.m/6 wire Electrical Noise < 0.01Ω
IP Grade IP51
Color code of Lead Wire
ring no.123456789101112
color blackbrownredorangeyellowgreenbluepurplegreywhitepinklightblue
