M125 Series Miniature Capsule Slip Ring

OD 12.5mm, 6~18circuits [email protected] or [email protected]

Senring M125 series miniature rotating slip ring, OD 12.5mm, length 13.5mm to 23.5mm optional, suitable for consumer electronics for transmitting signals.It's advanced military level, gold-gold contacts ensures low contact resistance, stability and working life. it is designed 90 ° V groove ensures smooth rotating, low torque. More inquiry or solution:Sales Tel No:86-755-29717812 or email: [email protected] or [email protected]

OD 12.5mm, Length 13.5mm~23.5mm;
6~18circuits [email protected] or [email protected],;
low torque,less than 0.06N.m;
Standard product, stocks available;
Flange A type,C type,without flange optional;
Integrated structure, easy installation.

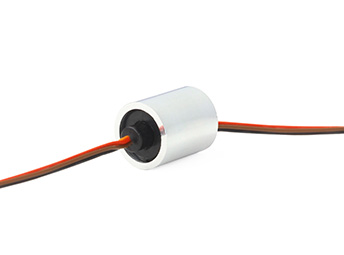

 OD 12.5mm miniature capsule slip ring

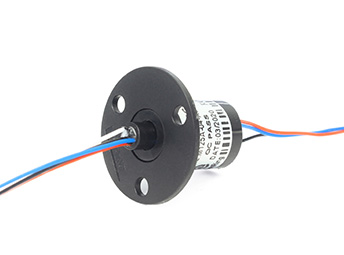

M125A(type A flange drawing) M125C(type C flange  drawing) M125(without flange Drawing )
Part no. description
how to chooes M125 series ( OD 12.5mm)2~18wires miniature capsule slip ring
For example

"M125-06" : "M" means capsule slip ring,"125" means OD 12.5mm, without flange,"06" means 6 wires,current each 1.5A(default 1.5A);

"M125A-08" : "M" means capsule slip ring,"125" means OD 12.5mm, "A" means type A flange,"08" means 8 wires,current each 1.5A(default 1.5A);

"M125C-0405" : "M" means capsule slip ring,"125" means OD 12.5mm, "C" means type C flange,"0405" means 4 wires,current each 5A;

Standard model list
model Circuits NO. Max current/circuit lead wire spec. Length L(mm)
M125-0661.5A Silver-plated teflon AWG30#13.5
M125-12121.5A Silver-plated teflon AWG30#18.2
M125-18181.5A Silver-plated teflon AWG30#23.5
M125-020525A Silver-plated teflon AWG22#13.5
M125-030535A Silver-plated teflon AWG22#18.2
M125-040545A Silver-plated teflon AWG22#18.2
Technical Specification of the slip ring
Mechanicall parameters Electrical parameters
Working Life 10millions for ref(depends on working conditions) Spec. Power Signal
Rotating speed 250RPM Voltage Range 0~240VAC/VDC 0~240VAC/VDC
Working Temp. -30°C~80°C Insolution Resistance ≥200MΩ/300VDC ≥200MΩ/300VDC
Work Humidity 0~85% RH Lead wire Spec. refer to model list refer to model list
Contact Material precious metal:gold-gold lead wire length standard length 150mm(can be customized)
Housing Material engineered plastic Dielectric Strength [email protected],60s
Torque 0.05N.m+0.01N.m/6 wire Electrical Noise < 0.01Ω
IP Grade IP51
Color code of Lead Wire
ring no.123456789101112
color blackbrownredorangeyellowgreenbluepurplegreywhitepinklightblue
