M079 series Miniature Capsule Slip Ring

OD 7.9mm,4~12wires

Senring SNM008 series is developed miniture slip ring with the OD 7.9mm (4-12 wires optional), it is applied to handheld ptz,mini drone slip ring and so on. This series OD larger 1.4mm than SNM006, it is designed 90° V groove ensures smooth rotating, low torque, also advanced military level, gold-gold contacts ensures low contact resistance, stability and working life, If no standard models suitable , pls contact us for custom solutions: Sales Tel No:86-755-29717812 or email: sales@senring.com or senring.us@gmail.com

Features
Compact Design,OD 7.9mm;
Low torque,less than 0.06N.m
4~12 circuits workable;
Standard product, stocks available;
Without flange,easy installation.;

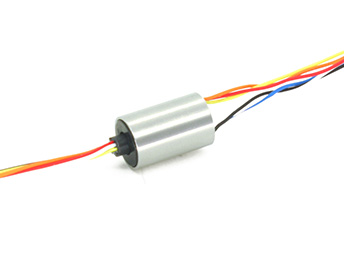

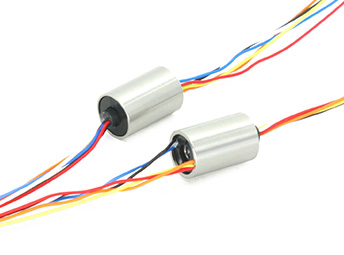

OD 7.9mm 4~12wires Miniature Capsule Slip Ring
Drawing
OD 7.9mm 4~12circuits@1A miniature capsule slip ring Drawing
Part no. description
how to chooes OD 7.9mm miniature capsule slip ring
For example

"M079-04" : "M" means capsule slip ring,"079" means OD 7.9mm, without flange, ,"04" means 4 wires,current each 1A;

"M079-08" : "M" means capsule slip ring,"079" means OD 7.9mm, without flange, ,"08" means 8 wires,current each 1A;

"M079-12" : "M" means capsule slip ring,"079" means OD 7.9mm, without flange, ,"12" means 12 wires,current each 1A;

Standard model list
model Circuits NO. Max current/circuit Length L(mm)
M079-0441A11.8
M079-0661A11.8
M079-0881A11.8
M079-12121A17.6
Technical Specification of the slip ring
Mechanicall parameters Electrical parameters
Working Life 10millions for ref(depends on working conditions) Spec. Power Signal
Rotating speed 150RPM Voltage Range 0~240VAC/VDC 0~240VAC/VDC
Working Temp. -30°C~80°C Insolution Resistance ≥300MΩ/300VDC ≥300MΩ/300VDC
Work Humidity 0~85% RH Lead wire Spec. AWG30# Silver-plated teflon AWG30# Silver-plated teflon
Contact Material precious metal:gold-gold lead wire length standard length 150mm(can be customized)
Housing Material Stainless steel(plastic optional) Dielectric Strength 300VAC@50Hz,60s
Torque 0.05N.m+0.01N.m/6 wire Electrical Noise < 0.01Ω
IP Grade IP51
Color code of Lead Wire
ring no.123456789101112
color blackbrownredorangeyellowgreenbluepurplegreywhitepinklightblue
