M065 Series OD6.5mm 4~12 Wire Miniture Slip Ring(Drone Slip Rings)

OD 6.5mm, 4~12circuits@1A(0~1A)

Senring M065 series is a newly developed miniture slip ring with the smallest OD 6.5mm (4~12 circuits optional), it is applied to handheld ptz,mini drone slip ring and so on. advanced military level, gold-gold contacts ensures low contact resistance, st

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE

Features: OD6.5mm,mini dimension;; Patented production, number：ZL 2016 2 0695427.2;; Low torque,less than 0.06N.m; 4~12 circuits workable;; Standard product, stocks available;; without flange,easy installation.

Part no. description

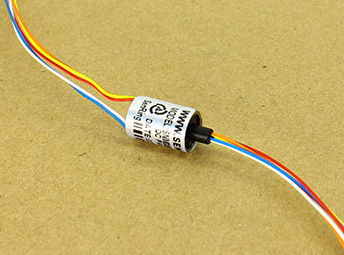

m065 series M065 Series OD6.5mm 4~12 Wire Miniture Slip Ring(Drone Slip Rings) slip ring description

Drawing

Standard model list

model	Circuits NO.	Max current/circuit	Length L(mm)
M065-04	4	1A	11.8
M065-06	6	1A	11.8
M065-08	8	1A	11.8
M065-12	12	1A	17.6

Technical Specification of m065 series slip ring

Mechanicall parameters
Working Life	10millions for ref(depends on working conditions)
Rotating speed	150RPM
Working Temp.	-30°C~80°C
Work Humidity	0~85% RH
Contact Material	precious metal:gold-gold
Housing Material	engineered plastic
Torque	0.05N.m+0.01N.m/6 wire
IP Grade	IP51

Electrical parameters
Spec.	Power	Signal
Voltage Range	0~240VAC/VDC	0~240VAC/VDC
Insolution Resistance	≥300MΩ/300VDC	≥300MΩ/300VDC
Lead wire Spec.	AWG30# Silver-plated teflon	AWG30# Silver-plated teflon
lead wire length	standard length 150mm (can be customized)
Dielectric Strength	300VAC@50Hz,60s
Electrical Noise	< 0.01Ω
