SENRING
Single Passage Rotary Union

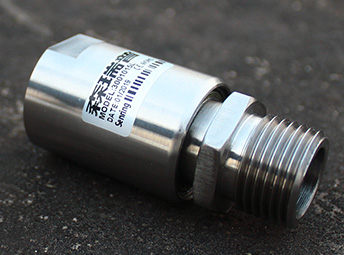

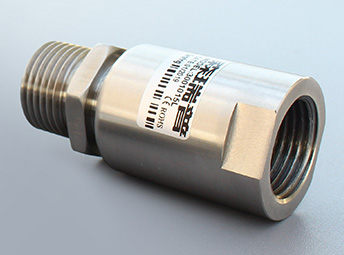

3001015L Series single passage pneumatic rotary union

1 In - 1 Out passage; Input G1/2″, Output G1/2″

SENRING 3001015L is singel passage rotary union that transfers Compressed air, steam, vacuum and kinds of gas media.

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE
Features
1 In - 1 Out passage; Input G1/2″, Output G1/2″
The media could be: Compressed air, hydrogen, nitrogen, chemical gas mixture, steam, cooling water, hot water,hot oil, petroleum, sulfuric acid, beverage, etc
Part no. description
3001015l series 3001015L Series single passage pneumatic rotary union slip ring description
Drawing
3001015l series 3001015L Series single passage pneumatic rotary union slip ring Drawing
Standard model list
Model ListInputOutputLength L(mm)
3001015LG1/2″G1/2″61mm
Technical Specification of 3001015l series slip ring
spec. data
Passages(Gas) 1 passage
Max. OperatingPressure -90kPa Positive Pressure 1Mpa, Vacuum -90kPa
Pipe Size G1/2″ Port
torque 0.2N.m
Working life 20millions for ref(depends on working conditions)
Max. Operating Speed 250RPM continously, 1000RPM intermittently
Working temp. -30℃∼80℃
Work humidity 0∼85% RH
Contact Materia Precious Metal
Housing Material stainless steel
IP Grade IP68
