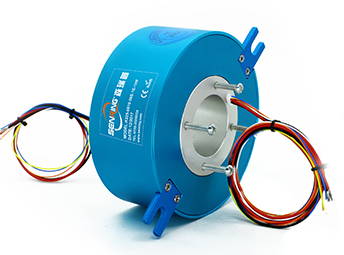

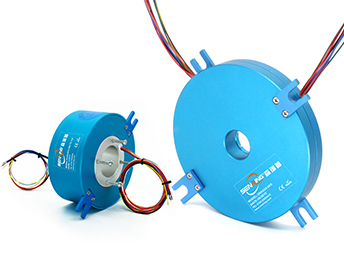

K380 Series Pancake Slip Ring

hole size 80mm,OD 156mm,thickness ranges from 18.2~88.6mm

K380 series Pancake Slip Ring,hole size 80mm,OD 156mm,thickness ranges from 18.2~88.6mm .With AL alloy structure,sprecious metal +gold plating contact material which ensures stable rotation and low resistance fluctuation.Mainly applied to those devices wi

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE
Features
Hole size:80mm.OD:156mm;
Thickness ranges from 18.2~88.6mm optional;
Contact material treated with percious metal and super hard gold-plated;
Make sure stable rotation and low resistance fluctuation;
Can be combined to transmit precise signal together with power;
Precious metal brush ensure the high stability and reliability transmission.
Part no. description
k380 series K380 Series Pancake Slip Ring slip ring description
Drawing
k380 series K380 Series Pancake Slip Ring slip ring Drawing
Standard model list
Modelsignal/5A10A20ALength L(mm)
k380-02S20018.2
k380-021002018.2
k380-0210-02S22024.6
k380-041004024.6
k380-06S60031
k380-061006031
k380-062000631
k380-0210-04S42031
k380-12S120050.2
k380-1210012050.2
k380-1220001250.2
k380-0610-06S66050.2
k380-0620-06S60650.2
k380-18S180069.4
k380-1810018069.4
k380-0610-12S126069.4
k380-1210-06S612069.4
k380-0810-10S108069.4
k380-24S240088.6
k380-2410024088.6
k380-0610-18S186088.6
k380-1210-12S1212088.6

*Remark:Circuits can be combined in parallel for bigger current,N circuits of 10A to get N*10A,such as 2 circuits of 10A in parallel for 20A use. if you need customize the hole size,OD,thickness,circuit no.and signal type of slip ring,pls contact the SenRing technician :186 7557 7111.

Technical Specification of k380 series slip ring
Mechanical Data
spec data
working life(Reference) refer to slip ring grade table
Rotating speed refer to slip ring grade table
working temp. -30℃∼80℃
work humidity 0∼85% RH
contact material refer to slip ring grade table
torque 0.1N.m;+0.03N.m/6 circuits
Electrical Data
spec data
power signal
voltage range 0∼440VAC/VDC 0∼240VAC/VDC
insulation resistance ≥1000MΩ/500VDC ≥1000MΩ/500VDC
lead wire spec. AWG17# Silver-plated teflon AWG22# Silver-plated teflon
lead wire length standard 300mm(can be customized)
Dielectric Strength [email protected],60s
Electrical noise < 0.01Ω
housing material aluminum alloy
IP grade IP51
k380 Grade Table
Grade code Max rotating speed working life contact material
C(standard) 60RPM 3 millions revolutions precious metal
D(industrical) 200RPM 10 millions revolutions precious metal
