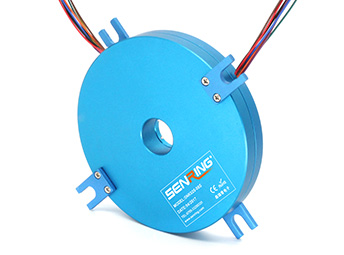

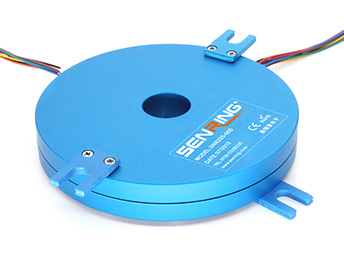

K225(SNK025)Integral Pancake Slip Ring(Thickness:22mm)

SenRing K225 series Pancake slip ring is a super thin slip ring, with hole size 25.4mm,thickness 22mm, OD ranges from 92mm~460mm. K225 series Pancake slip ring is mainly applied to those devices with limited space and strict limits of slip ring on thickness (height) but enough horizontal space(OD).Special vacuum sealing technology & precious metal brush ensure the high reliability transmitting and rotating performance of slip ring. With many advantages such as low torque ,low friction, low electrical noise and long life. Standard models support 2-48 circuits 2~20A power/signal.

Features
t\Thickness (height) :22mm ;
Hole size 25.4mm,OD 92mm-460mm;
Special vacuum sealing technology & precious metal brush ensure the high reliability transmitting and rotating performance;
Can be combined to transmit various signals such as high frequency signals、control signals and video signals,etc;
Excellent transmitting and rotating performance ;
Low torque ,low friction, low electrical noise and super long working life;
K225(SNK025)series disk Slip Ring|22mm ultrathin Slip Ring
Part no. description
K225(SNK025)series disk Slip Ring
Examples

K225-02S:K225 means K225 series Pancake slip ring (hole size 25.4mm,thickness 22mm),“02S” means 2 circuits signal;

K225-1210-08S:K225 means K225 series Pancake slip ring (hole size 25.4mm,thickness 22mm),“1210” means 12 circuits 10A each,“08S”means 8 circuits signal.

Drawing
K225(SNK025)series disk Slip Ring
Model List
Modelsignal/5A10A20AOD(mm)
k225-02S20092
k225-021002092
k225-0210-02S220108
k225-0410040108
k225-06S600124
k225-0610060124
k225-0620006124
k225-0210-04S420124
k225-12S1200172
k225-12100120172
k225-12200012172
k225-0610-06S660172
k225-0620-06S606172
k225-18S1800216
k225-18100180216
k225-0610-12S1260216
k225-1210-06S6120216
k225-0810-10S1080216
k225-24S2400268
k225-24100240268
k225-0610-18S1860268
k225-1210-12S12120268
K225-36S3600364
K225-48S4800460

*Remark:Circuits can be combined in parallel for bigger current,N circuits of 10A to get N*10A,such as 2 circuits of 10A in parallel for 20A use. if you need customize the hole size,OD,thickness,circuit no.and signal type of slip ring,pls contact the SenRing technician :186 7557 7111.

Technical Specification of the slip ring
Mechanical Data Electrical Data
specdataspecdata
working life(Reference)refer to slip ring grade table powersignal
Rotating speedrefer to slip ring grade table voltage range0∼440VAC/VDC0∼240VAC/VDC
working temp.-30℃∼80℃insulation resistance≥1000MΩ/500VDC≥1000MΩ/500VDC
work humidity0∼85% RHlead wire spec.AWG17# Silver-plated teflonAWG22# Silver-plated teflon
contact materialrefer to slip ring grade tablelead wire lengthstandard 300mm(can be customized)
housing materialaluminum alloyDielectric Strength[email protected],60s
torque0.1N.m;+0.03N.m/6 circuitsElectrical noise< 0.01Ω
IP gradeIP51
SenRing Slip Rings Grade Table
Grade code Max rotating speed working life contact material
C(standard) 60RPM 3 millions revolutions precious metal
D(industrical) 200RPM 10 millions revolutions precious metal
Color code of Lead Wire
ring no.123456789101112
color blackbrownredorangeyellowgreenbluepurplegreywhitepinklightblue
ring no.131415161718192021222324
color WHT/BLKWHT/BRNWHT/REDWHT/ORGWHT/YELWHT/GRNWHT/BLUWHT/PURWHT/GRYBLK/REDBLK/BRNtransparent

*Remark: Cycle code 1 means the No.1 lead wire count from rotor side to sator side. For example :The color turn of K225-06S is :black、brown、red、orange、yellow、green;24 lead wires form a color group.Repeatting the color group and mark with cable marker when the lead wires are more than 24.Remark:"1" : the first wire (ring 1#)starts from rotor side , such as K225-06S wire color sequence: LK/BRN/RED/ORG/YLW/GRN, 24 color wires as one group , if more than 24wires, repeat as sequence , use number tube to tell group 1#, 2#....
