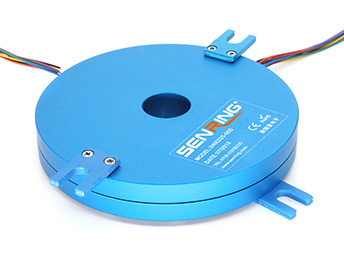

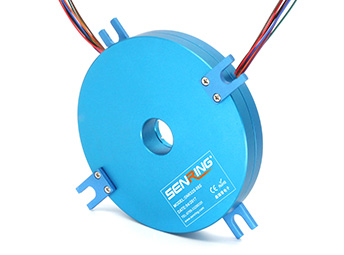

K270 Pancake Slip Ring(Thickness:30mm)

SenRing K270 series Pancake slip ring with super thin thickness, hole size 70mm,thickness 30mm,OD ranges from 152mm~520mm.K270 series Pancake slip ring is mainly applied to those devices with limited space and strict limits of slip ring on thickness (height) but enough horizontal space(OD).Special vacuum sealing technology & precious metal brush ensure the high reliability transmitting and rotating performance of slip ring. With many advantages such as low torque ,low friction, low electrical noise and long life. Standard models support 2-48 circuits 2~20A power/signal.

Features
Thickness (height):30mm;
Hole size:70mm,OD:152mm~520mm;
Special vacuum sealing technology & precious metal brush ensure the high reliability transmitting and rotating performance;
Can be combined to transmit various signals such as high frequency signals、control signals and video signals,etc;
Excellent transmitting and rotating performance ;
Low torque ,low friction, low electrical noise and super long working life;
K270(SNK070)series disk Slip Ring
Part no. description
K270(SNK070)series disk Slip Ring
Examples

K270-02S:K270 means K270 series Pancake slip ring (hole size 70mm,thickness 30mm),“02S” means 2 circuits signal;

K270-0810-08S:K270 means K270 series Pancake slip ring (hole size 70mm,thickness 30mm),“0810” means 8 circuits current(10A each),“08S”means 8 circuits signal.

Drawing
K270(SNK070)series disk Slip Ring
Model List
Modelsignal/5A10A20AOD(mm)
K270-02S200152
K270-0210020152
K270-0210-02S220168
K270-0410040168
K270-06S600184
K270-0610060184
K270-0620006184
K270-0210-04S420184
K270-12S1200232
K270-12100120232
K270-12200012232
K270-0610-06S660232
K270-0620-06S606232
K270-S181800280
K270-18100180280
K270-0610-12S1260280
K270-1210-06S6120280
K270-0810-10S1080280
K270-24S2400328
K270-24100240328
K270-0610-18S1860328
K270-1210-12S12120328
K270-36S3600424
K270-48S4800520

*Remark:Circuits can be combined in parallel for bigger current,N circuits of 10A to get N*10A,such as 2 circuits of 10A in parallel for 20A use. if you need customize the hole size,OD,thickness,circuit no.and signal type of slip ring,pls contact the SenRing technician :186 7557 7111.

Technical Specification of the slip ring
Mechanical Data Electrical Data
specdataspecdata
working life(Reference)refer to slip ring grade table powersignal
Rotating speedrefer to slip ring grade table voltage range0∼440VAC/VDC0∼240VAC/VDC
working temp.-30℃∼80℃insulation resistance≥1000MΩ/500VDC≥1000MΩ/500VDC
work humidity0∼85% RHlead wire spec.AWG17# Silver-plated teflonAWG22# Silver-plated teflon
contact materialrefer to slip ring grade tablelead wire lengthstandard 300mm(can be customized)
housing materialaluminum alloyDielectric Strength[email protected],60s
torque0.1N.m;+0.03N.m/6 circuitsElectrical noise< 0.01Ω
IP gradeIP51
SenRing Slip Rings Grade Table
Grade code Max rotating speed working life contact material
C(standard) 60RPM 3 millions revolutions precious metal
D(industrical) 200RPM 10 millions revolutions precious metal
Color code of Lead Wire
ring no.123456789101112
color blackbrownredorangeyellowgreenbluepurplegreywhitepinklightblue
ring no.131415161718192021222324
color WHT/BLKWHT/BRNWHT/REDWHT/ORGWHT/YELWHT/GRNWHT/BLUWHT/PURWHT/GRYBLK/REDBLK/BRNtransparent

*Remark:"1" : the first wire (ring 1#)starts from rotor side , such as k270-06S wire color sequence: BLK/BRN/RED/ORG/YLW/GRN , 24 color wires as one group , if more than 24wires, repeat as sequence , use number tube to tell group 1#, 2#....
