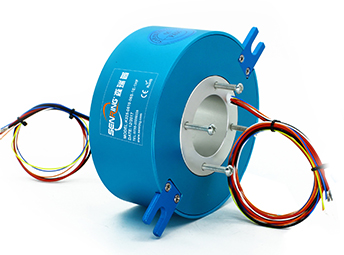

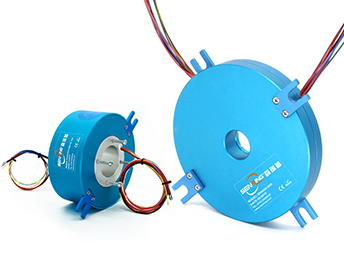

K312 Series Pancake Slip Ring

K312 series Pancake Slip Ring,hole size 12.7mm,OD 56mm,thickness ranges from 15.8-77.4mm.With AL alloy structure,sprecious metal +gold plating contact material which ensures stable rotation and low resistance fluctuation. Mainly applied to those devices with limited space and strict limits of slip ring on thickness (height) but enough horizontal space(OD).

Features
Hole size:12.7mm.OD:56mm;
Thickness ranges from 15.8~77.4mm;
Contact material treated with percious metal and super hard gold-plated;
Make sure stable rotation and low resistance fluctuation;
Can be combined to transmit precise signal together with power;
Precious metal brush ensure the high stability and reliability transmission.
K312 series Pancake Slip Ring
Part no. description
K312 series Pancake Slip Ring
Examples

K312-02S: K312 means K312 series Pancake Slip Ring,(hole size:12.7mm.OD:56mm,thickness:15.8mm),02S means 2 circuits signal;

K312-0810-10S:K312 means K312 series Pancake Slip Ring,(hole size:12.7mm.OD:56mm,thickness:60.6mm),“0810” means 8 circuits current (10A each), 10S means 10 circuits signal.

Drawing
K312 series Pancake Slip Ring
Model List
Modelsignal/5A10A20ALength L(mm)
K312-02S20015.8
K312-021002015.8
K312-0210-02S22021.4
K312-041004021.4
K312-06S60027
K312-061006027
K312-062000627
K312-0210-04S42027
K312-12S120043.8
K312-1210012043.8
K312-1220001243.8
K312-0610-06S66043.8
K312-0620-06S60643.8
K312-18S180060.6
K312-1810018060.6
K312-0610-12S126060.6
K312-1210-06S612060.6
K312-0810-10S108060.6
K312-24S240077.4
K312-2410024077.4
K312-0610-18S186077.4
K312-1210-12S1212077.4

*Remark:Circuits can be combined in parallel for bigger current,N circuits of 10A to get N*10A,such as 2 circuits of 10A in parallel for 20A use. if you need customize the hole size,OD,thickness,circuit no.and signal type of slip ring,pls contact the SenRing technician :186 7557 7111.

Technical Specification of the slip ring
Mechanical Data Electrical Data
specdataspecdata
working life(Reference)refer to slip ring grade table powersignal
Rotating speedrefer to slip ring grade table voltage range0∼440VAC/VDC0∼240VAC/VDC
working temp.-30℃∼80℃insulation resistance≥1000MΩ/500VDC≥1000MΩ/500VDC
work humidity0∼85% RHlead wire spec.AWG17# Silver-plated teflonAWG22# Silver-plated teflon
contact materialrefer to slip ring grade tablelead wire lengthstandard 300mm(can be customized)
housing materialaluminum alloyDielectric Strength[email protected],60s
torque0.1N.m;+0.03N.m/6 circuitsElectrical noise< 0.01Ω
IP gradeIP51
SenRing Slip Rings Grade Table
Grade code Max rotating speed working life contact material
C(standard) 60RPM 3 millions revolutions precious metal
D(industrical) 200RPM 10 millions revolutions precious metal
Color code of Lead Wire
ring no.123456789101112
color blackbrownredorangeyellowgreenbluepurplegreywhitepinklightblue
ring no.131415161718192021222324
color WHT/BLKWHT/BRNWHT/REDWHT/ORGWHT/YELWHT/GRNWHT/BLUWHT/PURWHT/GRYBLK/REDBLK/BRNtransparent

*Remark:"1" : the first wire (ring 1#)starts from rotor side , such as k312-06S wire color sequence: BLK/BRN/RED/ORG/YLW/GRN , 24 color wires as one group , if more than 24wires, repeat as sequence , use number tube to tell group 1#, 2#....
