SENRING

Mercury Slip Ring

";

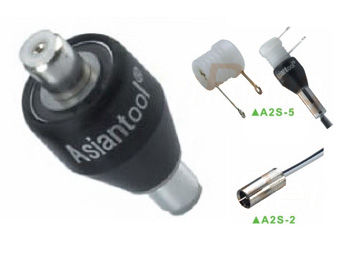

A2S Series Mercury Slip Ring(2circuits Signal@4A)

2 circuit,4A per circuit

SENRING A2S series mercury slip ring also called 2 circuits@4A mercury rotating connector (rotary joint),torque 75x10-3Nm,can be transmit 2circuits signal@4A.

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE
Drawing
a2s series A2S Series Mercury Slip Ring(2circuits Signal@4A) mercury slip ring Drawing
Installation
a2s Installation
Standard model list
Model Poles Current(A) Dielectric strength
AC/DC(V)
Max frequency
MHZ
Contact Resistance Max rotating speed Working temp.(Max/Min ℃) Torque
(x10-3Nm)
Insolution resistance
2 pole 4A 250 200 <1mΩ 2000 -29℃~60℃ 75 >25MΩ
Application

SENRING A2S Series Mercury Slip Ring(2circuits Signal@4A) slip ring is produced with special sealing materials,insolution and conductive technology,made of aluminum alloy or stainless steel,applied for any rotating objects of signal transmitting such as:tiny voltage, EMF, thermocouple, strain gauge,audio and video signals, high frequency, computer signals and electric power connections.

Caution

1、Working temperature does not exceed 60℃,indoor temperature and self-heating (rotating and electric connection)
2、Vertical installation and storage should keep the UP towards direction
3、Installing the slip ring into the shafe should keep no eccentricity
4、Do not solder on the slip ring and copper terminals
5、Special connection terminals can't use reduplicate
6、Vibration will shorten the working life
7、The slip ring can be mounted by the body or plastic collar but it couldn't carry any mechanical loads.Another end should be connected floating hold by wires
Pls follow above instructions, otherwise it will cause the damage or shorten the working life
