SENRING

Mercury Slip Ring

";

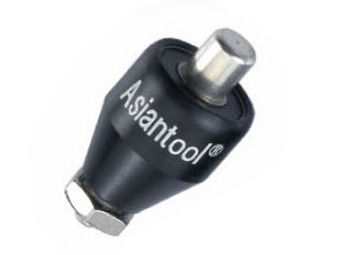

A1M Series Mercury Slip Ring([email protected] Power Current)

1 circuit,10A power current

SENRING A1H25PS series mercury slip ring also called 1 [email protected] power current mercury rotating connector(rotary joint) ,torque 250x10-3Nm,can be transmit [email protected] power current.It's is produced with special sealing materials,insolution and cond

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE
Drawing
a1m series A1M Series Mercury Slip Ring(1circuits@10A Power Current) mercury slip ring Drawing
Installation
a1m Installation
Standard model list
Model Poles Current(A) Dielectric strength
AC/DC(V)
Max frequency
MHZ
Contact Resistance Max rotating speed Working temp.(Max/Min ℃) Torque
(x10-3Nm)
Insolution resistance
1 pole 10A -- 200 <1mΩ 360°0 -29℃~60℃ 35 >25MΩ
Application

SENRING A1M Series Mercury Slip Ring([email protected] Power Current) slip ring is produced with special sealing materials,insolution and conductive technology,made of aluminum alloy or stainless steel,applied for any rotating objects of signal transmitting such as:tiny voltage, EMF, thermocouple, strain gauge,audio and video signals, high frequency, computer signals and electric power connections.

Caution

1、Working temperature does not exceed 60℃,indoor temperature and self-heating (rotating and electric connection)
2、Vertical installation and storage should keep the UP towards direction
3、Installing the slip ring into the shafe should keep no eccentricity
4、Do not solder on the slip ring and copper terminals
5、Special connection terminals can't use reduplicate
6、Vibration will shorten the working life
7、The slip ring can be mounted by the body or plastic collar but it couldn't carry any mechanical loads.Another end should be connected floating hold by wires
Pls follow above instructions, otherwise it will cause the damage or shorten the working life
