SENRING
High Frequency Rotary Joint

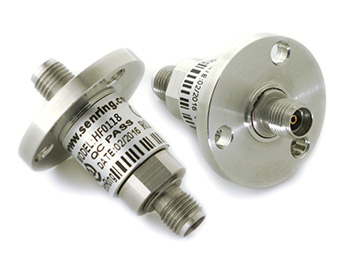

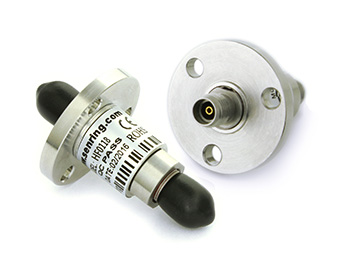

HF0150-12 Series Rf Rotary Joint Slip Ring

signal channel,frequency DC~50GHz,OD 12.7mm

Senring HF0150-12 series rf rotary joint is a singal channel (RF)high frequency slip ring,frequency DC~50GHz,2.4(K)-F connector,work speed 100RPM。HF0150-12 is used transmitting of analog and digital signals,RF Channel,can be customized to combine power/si

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE
Features
support 1 channel DC~50GHz high frequency signals;
Low insertion loss and voltage standing wave ratio;
Application for satellite Antenna,vehicle,radar,Microwave antenna test bench....etc;
Part no. description
hf0150-12 series HF0150-12 Series Rf Rotary Joint Slip Ring slip ring description
Drawing
hf0150-12 series HF0150-12 Series Rf Rotary Joint Slip Ring slip ring Drawing
Technical Specification of hf0150-12 series slip ring
Connector type 2.4mm 母头–2.4mm 母头(50欧姆)
Frequency DC to 50 Ghz
VSWR(max) [email protected] to 10 Ghz
[email protected] to 26.5GHz
[email protected] to 50GHz
VSWR fluctuation(max) [email protected] DC to 26.5 GHz
0.2 @ 26.5 to 50 GHz
Peak power(max) 3000W
Rotating speed(max) 250RPM
Starting torque(max) 0.5N.cm
Connector axial load(max) ±0.1N
Insulating material PTFE
Temperature -55 to +85℃ (work temperature)
-55 to +85℃ (storage temperature)
IP grade IP 40 acc. EN 60529
Style I type
Phase WOW ( Max degree) 1°@DC to 26.5 GHz
2°@26.5 to 50 GHz
Insertion loss 0.30 dB @ DC to 10 GHz
0.50 dB @10 to 26.5GHz
0.90 dB @26.5 to 50GHz
Insertion loss fluctuation 0.1 dB
Average power(max) 50 W @1 GHz
15 W @10GHz
5 W @26.5GHz
3W @50GHz
working life > 10 millions for ref
(depends on working conditions)
Rotating torque(max) 0.5 N.cm
Connector radial load(max) ±0.1N
Humidity 95% (work humidity)
85% (storage humidity)
