SENRING
High Frequency Rotary Joint

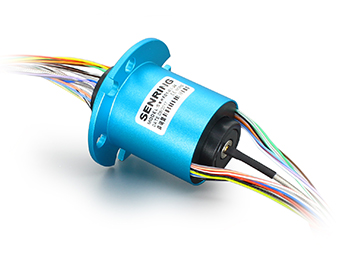

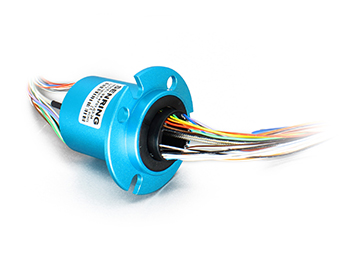

HF0103-32 Series Hight Frequency/Microwave Rotary Joint

signal channel,frequency DC~3GHz,OD 32.8mm

SENRING HF0103-32 series microwave coaxial rotary joint is a singal channel RF/microwave rotary joint slip ring,frequency DC~3GHz, RJ405 connector,work speed 100RPM。HF0103-32 series microwave coaxial rotary joint can be combine transmitting power or signa

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE
Features
RF Channel: 1 channel, signal/power channel: 1~24 channels;
Frequency: DC~3GHz;
Low insertion loss and voltage standing wave ratio;
Application for satellite Antenna,Ship-borne,vehicle,radar,Microwave antenna test bench....etc;;
Used in the 360° continuous rotation devices to transfer high frequency signals;
It can be combine transmitting 1~24 signals circuits@2A,larger current can be customized;
Integrated structure, easy installation;
Part no. description
hf0103-32 series HF0103-32 Series Hight Frequency/Microwave Rotary Joint slip ring description
Drawing
hf0103-32 series HF0103-32 Series Hight Frequency/Microwave Rotary Joint slip ring Drawing
Standard model list
model list RF Channel Frequency Circuits no. (10A) Circuits no. (0~2A) Length L(mm)
HF0103-32-18 1 channel DC~3GHz 0 18 channels 41.7mm
HF0103-32-24 1 channel DC~3GHz 0 24 channels 41.7mm
Technical Specification of hf0103-32 series slip ring
Connector type coax RG405 (can add SMA,MCX,MMCX connectors)
Frequency DC to 3 Ghz
VSWR(max) 1.7@DC to 3 GHz
VSWR fluctuation(max) 0.05
Peak power(max) 500W
Rotating speed(max) 250RPM
Starting torque(max) 0.5N.cm
Connector axial load(max) ±0.1N
Insulating material PTFE
Temperature -55 to +85℃ (work temperature)
-55 to +85℃ (storage temperature)
Style I type
Phase WOW ( Max degree)
Insertion loss 0.25 dB @ DC to 1.5 GHz
0.30 dB @10 to 3 GHz
Insertion loss fluctuation 0.05 dB
Average power(max) 200 W @1.5 GHz
500 W @3GHz
working life > 10 millions for ref(depends on working conditions)
Rotating torque(max) 0.5 N.cm
Connector radial load(max) ±0.1N
Humidity 95% (work humidity)
85% (storage humidity)
IP grade IP 40 acc. EN 60529

Mechanical
Working life > 10 millions for ref(depends on working conditions)
Rotating speed 250RPM
Temperature -30℃~80℃
Humidity 0~85% RH
Contact material gold-gold
Housing material aluminum alloy
Torque 0.05N.m+0.01N.m/6 channels
Electrical
Spec. Power Signal
Voltage range 0~240VAC/VDC 0~240VAC/VDC
Insolution resistance ≥300MΩ/300VDC ≥300MΩ/300VDC
Lead wire spec. AWG#26 Silver-plated teflon
Lead wire length standard 150mm
(can be customized)
Insolution resistance 300VAC@50Hz,60s
Electrical noise < 0.01Ω
IP grade IP51
