SENRING
High Frequency Rotary Joint

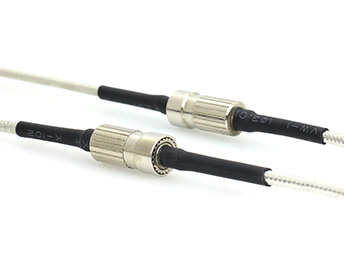

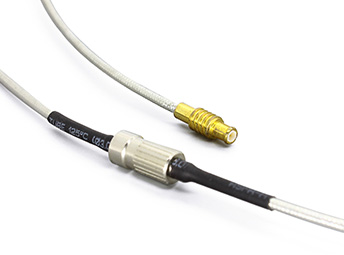

HF0103-07 sEries Rf Rotary Joint Slip Ring

signal channel,frequency DC~3GHz,OD 7mm

SENRING HF0103-07 series rf rotary joint is a singal channel (RF)high frequency slip ring,frequency DC~3GHz, RJ405 connector,work speed 100RPM。HF0103-07 is used transmitting of analog and digital signals,RF Channel,can be customized to combine power/signa

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE
Features
connector type: coax RG405 (can add SMA,MCX,MMCX connectors) ;
It is used in the 360° continuous rotation devices to transfer 1 channel high frequency signals;
Frequency DC~3GHz;
Low insertion loss and voltage standing wave ratio;
Application for satellite Antenna,vehicle,radar,Microwave antenna test bench....etc;
Part no. description
hf0103-07 series HF0103-07 sEries Rf Rotary Joint Slip Ring slip ring description
Drawing
hf0103-07 series HF0103-07 sEries Rf Rotary Joint Slip Ring slip ring Drawing
Technical Specification of hf0103-07 series slip ring
Connector type coax RG405 (can add SMA,MCX,MMCX connectors)
Frequency DC to 3 Ghz
VSWR(max) [email protected] to 3 GHz
VSWR fluctuation(max) 0.05
Peak power(max) 500W
Rotating speed(max) 250RPM
Starting torque(max) 0.5N.cm
Connector axial load(max) ±0.1N
Insulating material PTFE
Temperature -55 to +85℃ (work temperature)
-55 to +85℃ (storage temperature)
Style I type
Phase WOW ( Max degree)
Insertion loss 0.25 dB @ DC to 1.5 GHz
0.30 dB @10 to 3 GHz
Insertion loss fluctuation 0.05 dB
Average power(max) 200 W @1.5 GHz
500 W @3GHz
working life > 10 millions for ref(depends on working conditions)
Rotating torque(max) 0.5 N.cm
Connector radial load(max) ±0.1N
IP grade IP 40 acc. EN 60529
Humidity 95% (work humidity)
85% (storage humidity)
