SENRING
High Frequency Rotary Joint

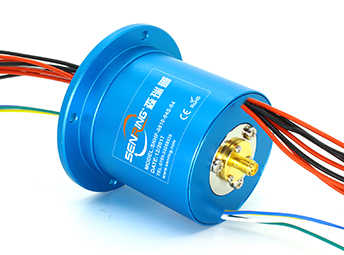

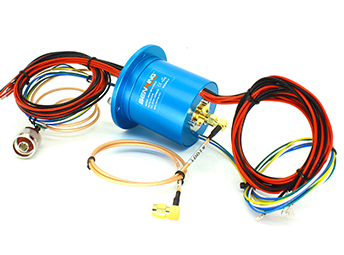

HF0118-56 Series Rf Rotary Joint Slip Ring

signal channel,frequency DC~18GHz,OD 56mm

SENRING HF0118-56 series rf rotary joint is a singal channel (RF)high frequency slip ring,frequency DC~18GHz,SMA-K/SMA-K connector ,work speed 100RPM。HF0118-56 is used transmitting of analog and digital signals,also can be combine transmitting power or s

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE
Features
support 1 channel DC~18GHz high frequency signals;
It can be combine transmitting power or signals (1-48 wires);
Low insertion loss and voltage standing wave ratio;
Application for satellite Antenna,vehicle,radar,Microwave antenna test bench....etc;
Part no. description
hf0118-56 series HF0118-56 Series Rf Rotary Joint Slip Ring slip ring description
Drawing
hf0118-56 series HF0118-56 Series Rf Rotary Joint Slip Ring slip ring Drawing
Standard model list
model list RF Channel Frequency Circuits no. (10A) Circuits no. (0~2A) Length L(mm)
HF0118-56-0610 1 channel DC~18GHz 6 channels 0 38mm
HF0118-56-06S 1 channel DC~18GHz 0 6 channels 38mm
HF0118-56-0610-06S 1 channel DC~18GHz 6 channels 6 channels 55mm
HF0118-56-1210 1 channel DC~18GHz 12 channels 0 55mm
HF0118-56-12S 1 channel DC~18GHz 0 12 channels 55mm
HF0118-56-0610-12S 1 channel DC~18GHz 6 channels 12 channels 71.5mm
HF0118-56-1810 1 channel DC~18GHz 18 channels 0 71.5mm
HF0118-56-18S 1 channel DC~18GHz 0 18 channels 71.5mm
HF0118-56-0610-18S 1 channel DC~18GHz 6 channels 18 channels 88.5mm
HF0118-56-1210-12S 1 channel DC~18GHz 12 channels 12 channels 88.5mm
HF0118-56-2410 1 channel DC~18GHz 24 channels 0 88.5mm
HF0118-56-24S 1 channel DC~18GHz 0 24 channels 88.5mm
HF0118-56-36S 1 channel DC~18GHz 0 36 channels 122mm
HF0118-56-48S 1 channel DC~18GHz 0 48 channels 156mm
Technical Specification of hf0118-56 series slip ring
Connector type SMA-K(50Ω)
Frequency DC to 18 Ghz
VSWR(max) [email protected] to 10 GHz
[email protected] to 18 GHz
VSWR fluctuation(max) 0.05
Peak power(max) 3000W
Rotating speed(max) 250RPM
Starting torque(max) 0.5N.cm
Connector axial load(max) ±0.1N
Insulating material PTFE
Temperature -55 to +85℃ (work temperature)
-55 to +85℃ (storage temperature)
IP grade IP 40 acc. EN 60529
Style I type
Phase WOW ( Max degree)
Insertion loss 0.25 dB @ DC to 10 GHz
0.30 dB @10 to 18 GHz
Insertion loss fluctuation 0.05 dB
Average power(max) 500 W @1 GHz
200 W @6GHz
100 W @12 GHz
30 W @18GHz
working life > 10 millions for ref(depends on working conditions)
Rotating torque(max) 0.5 N.cm
Connector radial load(max) ±0.1N
Humidity 95% (work humidity)
85% (storage humidity)

Mechanical
Working life > 10 millions for ref(depends on working conditions)
Rotating speed 250RPM
Temperature -30℃~80℃
Humidity 0~85% RH
Contact material gold-gold
Housing material aluminum alloy
Torque 0.05N.m+0.01N.m/6 channels
Electrical
Spec. Power Signal
Voltage range 0~440VAC/VDC 0~240VAC/VDC
Insolution resistance ≥500MΩ/500VDC ≥300MΩ/300VDC
Lead wire spec. AWG#17 Silver-plated teflon wire AWG#22 Silver-plated teflon wire
Lead wire length standard 150mm(can be customized)
Insolution resistance [email protected],60s
Electrical noise < 0.01Ω
IP grade IP51
