Dustproof & Waterproof Slip Ring
";

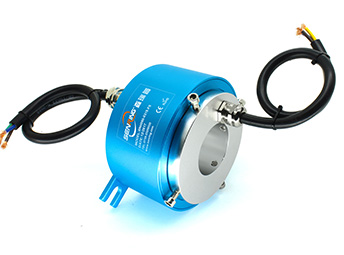

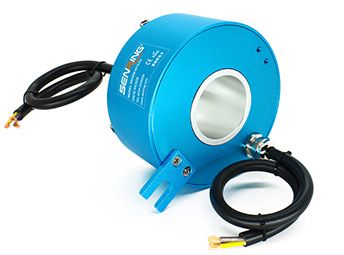

FH50119 Series Dustproof&Waterproof Slip Ring Lead Electric Appliance

IP grade:IP65,IP68 optional,hole size 50mm,OD:119mm;

FH50119 series Dustproof&waterproof Slip Ring Lead Electric Appliance,hole size 50mm,OD:119mm,IP grade:IP65,IP68 optional.

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE
Features
Specially designed for underwater working and severe environment;
Industrial grade product, with stator flange ,IP grade:IP65,IP68 optional,
Combination transmission USB, Ethernet, fiber and other signals customization available;
Adopting gold - gold contact, imported seal and military-grade plating treatment;
Anti-corrosion,acid and alkali resistance stainless steel housing make sure work stably in all kinds of bad environment.
Part no. description
fh50119 series FH50119 Series Dustproof&Waterproof Slip Ring Lead Electric Appliance slip ring description
Drawing
fh50119 series FH50119 Series Dustproof&Waterproof Slip Ring Lead Electric Appliance slip ring Drawing
Standard model list
Model Circuit/Signal no. Length L(mm)
signal/5A 10A
HF50119-02S 2 0 60
HF50119-0210 0 2 60
HF50119-03S 3 0 64
HF50119-0310 0 3 64
HF50119-06S 6 0 76
HF50119-0210-04S 4 2 76
HF50119-0410-02S 2 4 76
HF50119-0610 0 6 76
HF50119-12S 12 0 100
HF50119-0210-10S 10 2 100
HF50119-0310-09S 9 3 100
HF50119-0610-06S 6 6 100
HF50119-0810-04S 4 8 100
HF50119-1010-02S 2 10 100
HF50119-1210 10 12 100
HF50119-18S 18 0 124
HF50119-0210-16S 16 2 124
HF50119-0410-14S 14 4 124
HF50119-0610-12S 12 6 124
HF50119-0810-10S 10 8 124
HF50119-1010-08S 8 10 124
HF50119-1210-06S 6 12 124
HF50119-1410-04S 4 14 124
HF50119-1610-02S 2 16 124
HF50119-24S 24 0 148
HF50119-0410-20S 20 4 148
HF50119-0610-18S 18 6 148
HF50119-1210-12S 12 12 148
HF50119-1810-06S 6 18 148
HF50119-2410 0 24 148
HF50119-30S 30 0 172
HF50119-0610-24S 24 6 172
HF50119-1210-18S 18 12 172
HF50119-1810-12S 12 18 172
HF50119-2410-06S 6 24 172
HF50119-3010 0 30 172
HF50119-36S 36 0 196
HF50119-0610-30S 30 6 196
HF50119-1210-S24 24 12 196
HF50119-3610 0 36 196
HF50119-42S 42 0 220
HF50119-0610-36S 36 6 220
HF50119-1210-30S 30 12 220
HF50119-4210 0 42 220
HF50119-48S 48 0 244
HF50119-0610-42S 42 6 244
HF50119-1210-36S 36 12 244
HF50119-1810-30S 30 18 244
HF50119-P2410-24S 24 24 244
HF50119-4810 0 48 244
HF50119-60S 60 0 292
HF50119-0610-54S 54 6 292
HF50119-0910-51S 51 9 292
HF50119-1210-48S 48 12 292
HF50119-2410-36S 36 24 292
HF50119-72S 72 0 340
HF50119-1210-60S 60 12 340
HF50119-2410-48S 48 24 340
HF50119-3610-36S 36 36 340
HF50119-84S 84 0 388
HF50119-1210-72S 72 12 388
HF50119-2410-60S 60 24 388
HF50119-3610-48S 48 36 388
HF50119-96S 96 0 436
HF50119-1210-84S 84 12 436
HF50119-2410-72S 72 24 436
HF50119-3610-60S 60 36 436
HF50119-4210-54S 56 42 436
HF50119-108S 108 0 484
HF50119-1210-96S 96 12 484
HF50119-2410-84S 84 24 484
HF50119-3610-72S 72 36 484

*Remark:Circuits can be combined in parallel for bigger current,N circuits of 10A to get N*10A,such as 2 circuits of 10A in parallel for 20A use. if you need customize the Ethernet,power and signal channel no. or mix other signal of slip ring,pls contact the SenRing salesman.

Technical Specification of fh50119 series slip ring
Mechanical Data Electrical Data
spec data spec data
Rotating speed refer to slip ring grade table voltage range 0∼690VAC/VDC 0∼440VAC/VDC
working temp. -40℃∼85℃ insulation resistance ≥1000MΩ/500VDC ≥1000MΩ/500VDC
IP grade IP65, optional IP68 lead wire spec. AWG17# Silver-plated teflon AWG22# Silver-plated teflon
contact material refer to slip ring grade table lead wire length standard 300mm(can be customized)
housing material aluminum alloy Dielectric Strength 800VAC@50Hz,60s
torque 0.1N.m;+0.03N.m/6 circuits Electrical noise < 0.01Ω
Material RoHS compliant CE certificate yes
fh50119 Grade Table
Grade code Max rotating speed working life contact material
C(standard) 100RPM 1000 millions revolutions precious metal
D(industrical) 200RPM 3000 millions revolutions precious metal
