SENRING
Dustproof & Waterproof Slip Ring

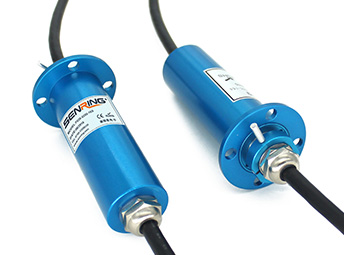

F028 Series Waterproof Slip Ring(OD:28mm,IP68)

IP grade:IP68,solid,OD:28mm;

SENRING F028 series waterproof slip ring ,OD28mm,maximum IP:IP68,can conduct electricity and transfer various signals when 360° roating underwater,anti-corrosion,acid and alkali resistance stainless steel housing make sure work stably in all kinds of

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE
Features
IP grade:IP68,can work stably underwater.
OD:28mm,length:97.5mm;
Support 2~12 circuits@2A~20A power/signal;
Anti-corrosion,acid and alkali resistance stainless steel housing make sure work stably in all kinds of bad environment;
Integrated structure, easy installation;
Part no. description
f028 series F028 Series Waterproof Slip Ring(OD:28mm,IP68) slip ring description
Drawing
f028 series F028 Series Waterproof Slip Ring(OD:28mm,IP68) slip ring Drawing
Standard model list
Model Circuit/Signal no. Length L(mm)
2A 5A 10A 20A
F028-0320 0 0 0 3 87.5
F028-0220 0 0 0 2 87.5
F028-06S 6 0 0 0 87.5
F028-12S 12 0 0 0 87.5
F028-18S 18 0 0 0 87.5
F028-24S 24 0 0 0 87.5
F028-0205-16S 16 2 0 0 87.5
F028-0210-12S 12 0 2 0 87.5
F028-0310-06S 6 0 3 0 87.5
F028-0410 0 0 4 0 87.5
F028-0805 0 8 0 0 87.5
F028-1205 0 12 0 0 87.5

*Remark:Circuits can be combined in parallel for bigger current,N circuits of 10A to get N*10A,such as 2 circuits of 10A in parallel for 20A use. if you need customize the Ethernet,power and signal channel no. or mix other signal of slip ring,pls contact the SENRING salesman.

Technical Specification of f028 series slip ring
Mechanical Data
spec data
Rotating speed refer to slip ring grade table
working temp. -40℃∼85℃
IP grade IP68
contact material refer to slip ring grade table
housing material stainless steel
certificate RoHS certificate
Electrical Data
spec data
voltage range 0∼240VAC/VDC 0∼240VAC/VDC
insulation resistance ≥500MΩ/500VDC ≥500MΩ/500VDC
lead wire spec. AWG17# Silver-plated teflon AWG22# Silver-plated teflon
lead wire length standard 300mm(can be customized)
Dielectric Strength 500VAC@50Hz,60s
Electrical noise <0.01Ω
CE certificate Yes

f028 Grade Table
Grade code Max rotating speed working life contact material
C:(standard) 100RPM 10 millions  precious metal
D:(industrical) 200RPM 30 millions
gold-gold
