Dustproof & Waterproof Slip Ring

F Series Dustproof & Waterproof Slip Rings

SENRING F Series Dustproof & waterproof Slip Rings is specially designed for outdoor,underwater or some harsh environment applications, IP65/IP68 optional

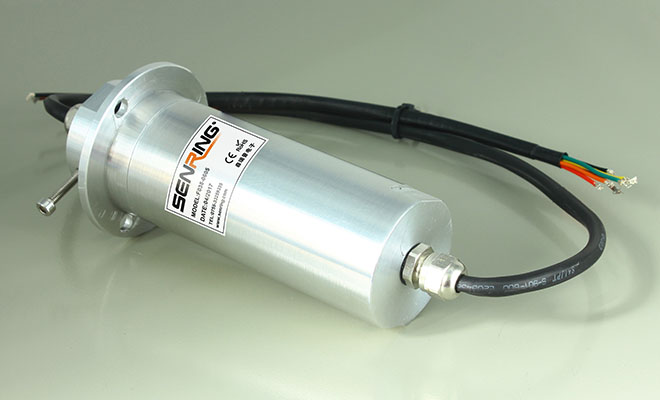

  1. F Series Dustproof & Waterproof Slip Rings image 1F Series Dustproof & Waterproof Slip Rings image 1

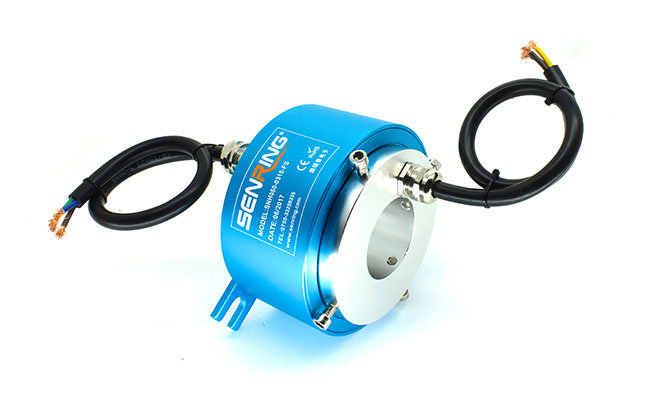

  2. F Series Dustproof & Waterproof Slip Rings image 2F Series Dustproof & Waterproof Slip Rings image 2

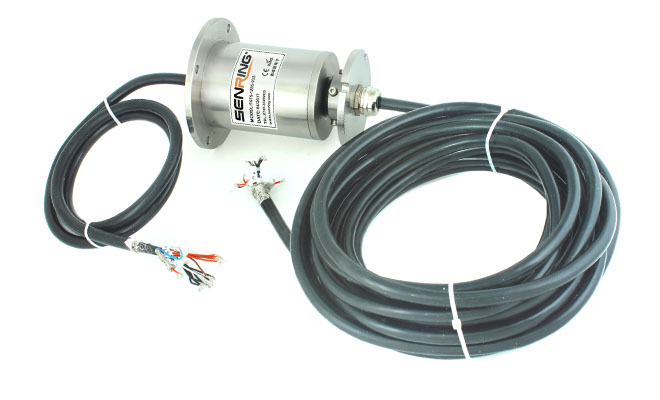

  3. F Series Dustproof & Waterproof Slip Rings image 3F Series Dustproof & Waterproof Slip Rings image 3
Features
SENRING's F028 and F038series Dustproof&waterproof Slip Rings, IP68,can work underwater 300M, mainly applied to ships and oil wells
F075 series, mainly applied production equipments such as beer machine,liquid filling machine
Static sealing with O-ring and dynamic sealing of rotation position with abrasion resistant &anti-corrosion Glyd ring for longer life
Current from 2A to 50A for your different demands
Standard product,stock available
Anti-corrosion stainless steel housing for better protection
Integrated structure, easy installation
Part no. description
  F   ID OD - power circuits - signal circuits - Product grade
F:Dustproof &
Waterproof
Slip Ring
Examples:
028:solid,OD:28mm
038:solid,OD:38mm
056:solid,OD:56mm
086:solid,OD:86mm
H2586,hole size:25.4mm
OD:86mm
H50119:hole size:50mm
OD:119mm
Examples:
0610:6 circuits@10A
1230:12 circuits@30A
Examples:
06S:6 circuits signal@2A(5A options)
12S:12 circuits signal@2A(5A options)
Examples:
C:standard
D:industrical
model list
Model PDF IP grade hole size (mm) OD (mm) Max Circuits
IP68 solid 28mm 24 circuits
IP68 solid 38mm 56 circuits
standard IP65, IP68 optional solid 56mm 48 circuits
standard IP65, IP68 optional solid 86mm 96 circuits
standard IP65, IP68 optional 25.4mm 86mm 72 circuits
standard IP65, IP68 optional 50mm 119mm 72 circuits


*If no standard models suitable , contact us for custom solutions,E-mail: info@senring.com senring.us@gmail.com

Color code of Lead Wire
ring no.123456789101112
color blackbrownredorangeyellowgreenbluepurplegreywhitepinklightblue
ring no.131415161718192021222324
color WHT/BLKWHT/BRNWHT/REDWHT/ORGWHT/YELWHT/GRNWHT/BLUWHT/PURWHT/GRYBLK/REDBLK/BRNtransparent
