Dustproof & Waterproof Slip Ring

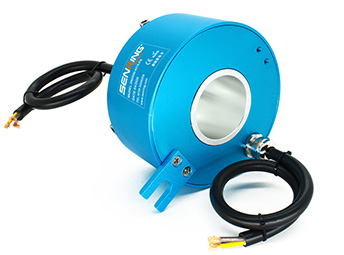

FH2586 Series Dustproof&Waterproof Slip Ring Lead Electric Appliance

IP grade:IP65,IP68 optional,hole size 25.4mm,OD:86mm;

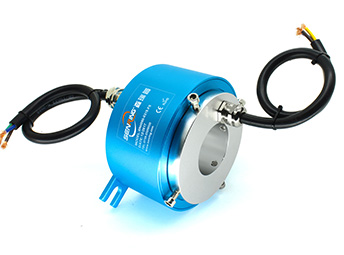

FH2586 series Dustproof&waterproof Slip Ring Lead Electric Appliance,hole size 25.4mm,OD:86mm,IP grade up to IP68,specially designed for underwater working environment when 360° rotating.

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE
Features
Specially designed for underwater working and severe environment;
Industrial grade product, with stator flange ,IP grade:IP65,IP68 optional,
Combination transmission USB, Ethernet, fiber and other signals customization available;
Adopting gold - gold contact, imported seal and military-grade plating treatment;
Anti-corrosion,acid and alkali resistance stainless steel housing make sure work stably in all kinds of bad environment.
Part no. description
fh2586 series FH2586 Series Dustproof&Waterproof Slip Ring Lead Electric Appliance slip ring description
Drawing
fh2586 series FH2586 Series Dustproof&Waterproof Slip Ring Lead Electric Appliance slip ring Drawing
Standard model list
Model Circuit/Signal no. Length L(mm)
signal/5A 10A
FH2586-02S 2 0 56
FH2586-0210 0 2 56
FH2586-03S 3 0 60
FH2586-0310 0 3 60
FH2586-06S 6 0 60
FH2586-0210-04S 4 2 72
FH2586-0410-02S 2 4 72
FH2586-0610 0 6 72
FH2586-12S 12 0 96
FH2586-0210-10S 10 2 96
FH2586-0310-09S 9 3 96
FH2586-0610-06S 6 6 96
FH2586-0810-04S 4 8 96
FH2586-1010-02S 2 10 96
FH2586-1210 0 12 96
FH2586-18S 18 0 120
FH2586-0210-16S 16 2 120
FH2586-0410-14S 14 4 120
FH2586-0610-12S 12 6 120
FH2586-0810-10S 10 8 120
FH2586-1010-08S 8 10 120
FH2586-1210-06S 6 12 120
FH2586-1410-04S 4 14 120
FH2586-1610-02S 2 16 120
FH2586-24S 24 0 144
FH2586-0410-20S 20 4 144
FH2586-0610-18S 18 6 144
FH2586-1210-12S 12 12 144
FH2586-1810-06S 6 18 144
FH2586-2410 0 24 144
FH2586-30S 30 0 168
FH2586-0610-24S 24 6 168
FH2586-1210-18S 18 12 168
FH2586-1810-12S 12 18 168
FH2586-2410-06S 6 24 168
FH2586-3010 0 30 168
FH2586-36S 36 0 192
FH2586-0610-30S 30 6 192
FH2586-1210-24S 24 12 192
FH2586-3610 0 36 192
FH2586-42S 420 216 216
FH2586-0610-36S 36 6 216
FH2586-1210-30S 30 12 216
FH2586-48S 48 0 240
FH2586-0610-42S 42 6 240
FH2586-1010-38S 38 10 240
FH2586-1210-36S 36 12 240
FH2586-1810-30S 30 18 240
FH2586-2410-24S 24 24 240
FH2586-60S 60 0 288
FH2586-0610-54S 54 6 288
FH2586-1010-50S 50 10 288
FH2586-1210-48S 48 12 288
FH2586-72S 72 0 336

*Remark:Circuits can be combined in parallel for bigger current,N circuits of 10A to get N*10A,such as 2 circuits of 10A in parallel for 20A use. if you need customize the Ethernet,power and signal channel no. or mix other signal of slip ring,pls contact the SenRing salesman.

Technical Specification of fh2586 series slip ring
Mechanical Data
spec data
Rotating speed refer to slip ring grade table
working temp. -40℃∼85℃
IP grade IP65, optional IP68
contact material refer to slip ring grade table
housing material aluminum alloy
torque 0.1N.m;+0.03N.m/6 circuits
Material RoHS compliant
CE certificate yes
Electrical Data
spec data
voltage range 0∼690VAC/VDC 0∼440VAC/VDC
insulation resistance ≥1000MΩ/500VDC ≥1000MΩ/500VDC
lead wire spec. AWG17# Silver-plated teflon AWG22# Silver-plated teflon
lead wire length standard 300mm
(can be customized)
Dielectric Strength [email protected],60s
Electrical noise < 0.01Ω
fh2586 Grade Table
Grade code Max rotating speed working life contact material
C(standard) 100RPM 1000 millions revolutions precious metal
D(industrical) 200RPM 3000 millions revolutions precious metal
