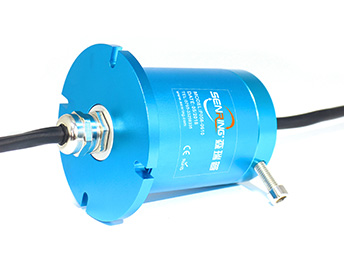

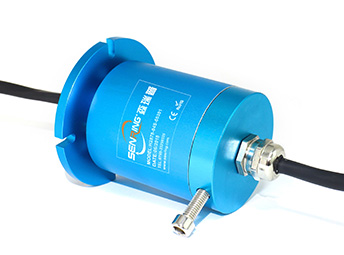

F056 Series Waterproof Slip Ring(OD 56mm,IP65)

IP grade:IP65,IP68 optional,solid,OD:56mm;

SENRING F056 series Dustproof&waterproof Slip Rings also called Dustproof&waterproof Lead Electric Appliance,with IP65 which lower than F028 and F038,applied to devices no need to immerse slip-ring in water,such as Packaging machine, Beer machine and othe

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE
Features
IP grade:IP65,IP68 customization available.
OD:56mm,length ranges from 113~116mm;
Support 2~56 circuits@2A~50A power/signal;
Anti-corrosion,acid and alkali resistance stainless steel housing make sure work stably in all kinds of bad environment;
Part no. description
f056 series F056 Series Waterproof Slip Ring(OD 56mm,IP65) slip ring description
Drawing
f056 series F056 Series Waterproof Slip Ring(OD 56mm,IP65) slip ring Drawing
Standard model list
Model Circuit/Signal no. Length L(mm)
signal/5A 10A
F056-0210 0 2 57
F056-02S 2 0 57
F056-0310 0 3 60
F056-03S 3 0 60
F056-0410 0 4 62.5
F056-04S 4 0 62.5
F056-0210-02S 2 2 62.5
F056-0610 0 6 68
F056-06S 6 0 68
F056-0210-04S 4 2 68
F056-0810 0 8 73.5
F056-08S 8 0 73.5
F056-0410-4S 4 4 73.5
F056-1010 0 10 79.5
F056-0610-4S 4 6 79.5
F056-1210 0 12 85
F056-12S 12 0 85
F056-0610-6S 6 6 85
F056-1810 0 18 101.5
F056-18S 18 0 101.5
F056-0610-12S 12 6 101.5
F056-1010-08S 8 10 101.5
F056-2410 0 24 118.5
F056-0610-18S 18 6 118.5
F056-1210-12S 12 12 118.5

*Remark:Circuits can be combined in parallel for bigger current,N circuits of 10A to get N*10A,such as 2 circuits of 10A in parallel for 20A use. if you need customize the Ethernet,power and signal channel no. or mix other signal of slip ring,pls contact the SENRING salesman.

Technical Specification of f056 series slip ring
Mechanical Data
spec data
Rotating speed refer to slip ring grade table
working temp. -40℃∼85℃
IP grade IP65, optional IP68
contact material refer to slip ring grade table
housing material aluminum alloy or stainless steel
certificate RoHS certificate
Electrical Data
spec data
voltage range 0∼240VAC/VDC 0∼240VAC/VDC
insulation resistance ≥1000MΩ/500VDC ≥1000MΩ/500VDC
lead wire spec. AWG17# Silver-plated teflon AWG28# Silver-plated teflon
lead wire length standard 300mm(can be customized)
Dielectric Strength 800VAC@50Hz,60s
Electrical noise < 0.01Ω
CE certificate yes

f056 Grade Table
Grade code Max rotating speed working life contact material
C:(standard) 100RPM 10 millions precious metal
D:(industrical) 200RPM 30 millions
gold-gold
