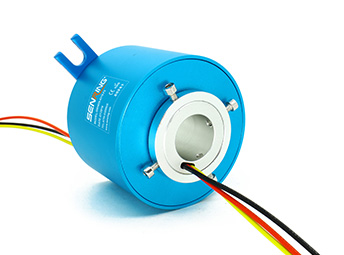

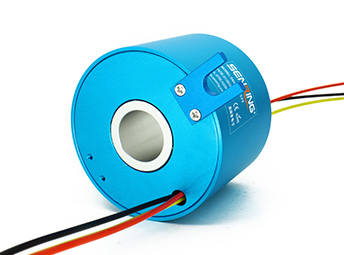

208602100 Series High Current Slip Ring

2 channels,maximum current 100A per channel;

SENRING 208602100 series 360° rotation High Current slip ring hole size 25.4mm(Custmization available,suitable for 0~25.4mm rotation axis),OD 86mm,sipport 2 circuits (100A each) high current.If you need to combine other circuit/signal channel no.customiza

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE

Features: Through hole installation,hole size 25.4mm(Customization available,suitable for 0~25.4mm rotation axis)OD86mm;; Supporting 2 circuits high current(100A each);; Can be customize quickly on special circuit no. based on standard model;; Stainless steel housing make sure better protection;; Has the advantages of small contact resistance, low heat and long - term stable operation;; Integrated structure design,easy installation.

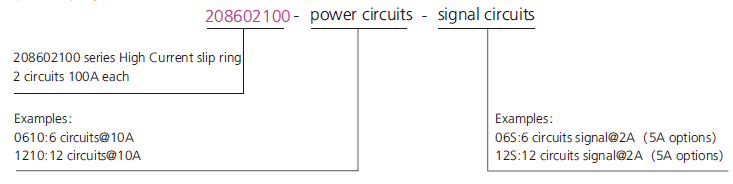

Part no. description

208602100 series 208602100 Series High Current Slip Ring slip ring description

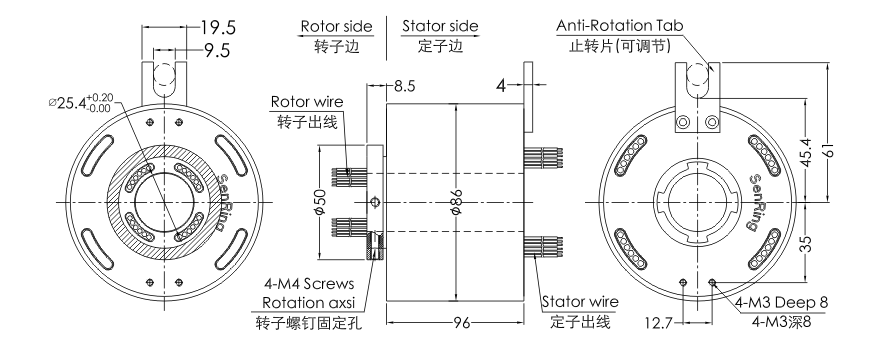

Drawing

Standard model list

Model	Circuits	Max current	voltage	Max speed	working temp.
208602100	2 circuits	100A	690V	250RPM	-40℃~+80℃

Technical Specification of 208602100 series slip ring
